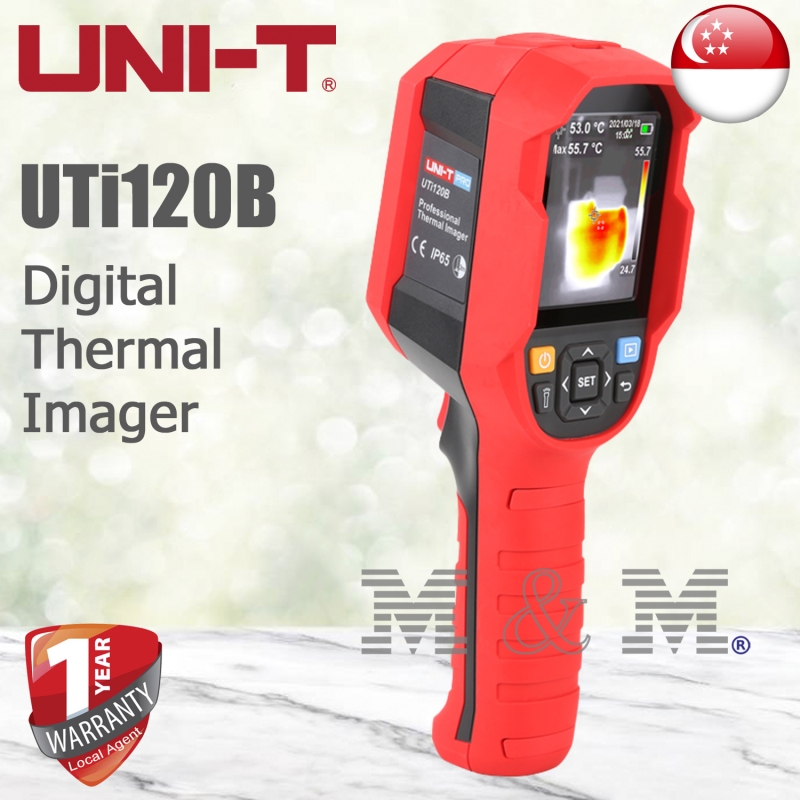

UNI-T UTi120B Infrared Thermal Imager -20℃~400℃

UTi120B

New

UTi120B is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance and attractive price, with 120×90 pixels IR resolution which can automatically track the objective’s temperature from -20℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications

Features :

  • Durable and user-friendly
  • 2.8” TFT display screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Image modess:Thermal,Visual image,Fusion
  • Buzzer alarm
  • Color palettes: 5(White hot, Black hot, Red hot, Ironbow, Rainbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP65
  • 2m drop proof

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Hurry, Selling Fast!

S$ 475.00

More info

Technical Data
IR resolution (Pixels) 120×90
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 5
(White hot, Black hot, Red hot, Ironbow, Rainbow)
Image modes Thermal,Visual image,Fusion
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
PC software analysis
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time  ≥6 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
