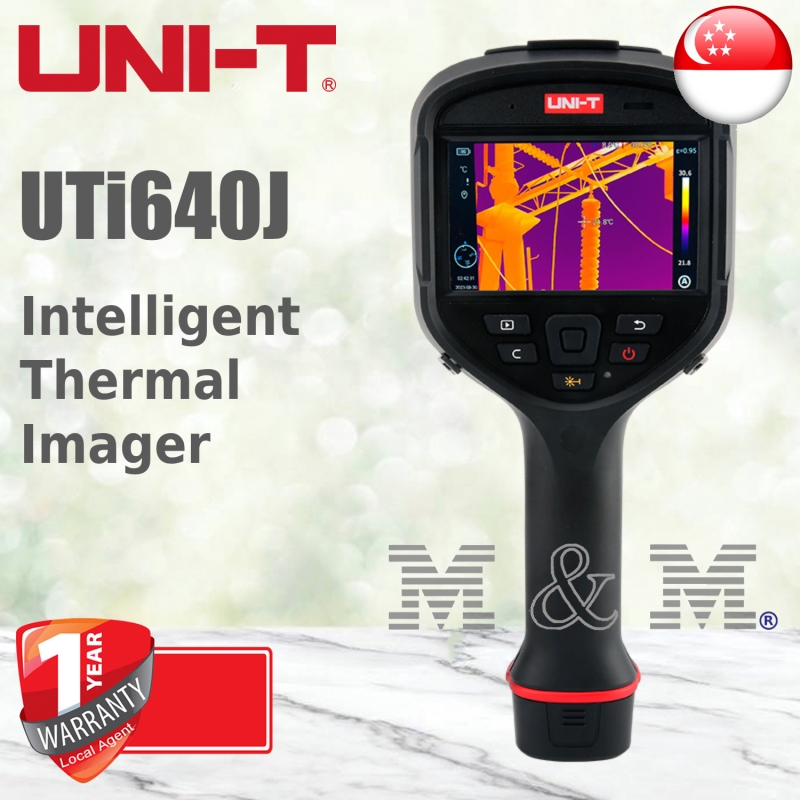

UNI-T UTi640J Professional Enhanced Thermal Imager

Model UTi640J

Condition New

UTi640J is a new handheld thermal camera released in 2024. It is a professional enhanced thermal imaging camera at high configuration. UTi640J features a 640×480 infrared resolution camera. By adopting the advanced T-Mix technology, it reaches 1280×960 super resolution, allowing you to see the details clearly. It supports built-in LED flashlight which can be used for infrared heat inspection in dark environments. The high-temperature alarm buzzer sounds an alarm when the temperature exceeds a pre-set threshold, helping you to identify potential safety hazards in a timely manner.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 1300 loyalty points. Your cart will total 1300 points that can be converted into a voucher of S$ 260.00.

Send to a friend

Send to a friend

UNI-T UTi640J Professional Enhanced Thermal Imager

UTi640J is a new handheld thermal camera released in 2024. It is a professional enhanced thermal imaging camera at high configuration. UTi640J features a 640×480 infrared resolution camera. By adopting the advanced T-Mix technology, it reaches 1280×960 super resolution, allowing you to see the details clearly. It supports built-in LED flashlight which can be used for infrared heat inspection in dark environments. The high-temperature alarm buzzer sounds an alarm when the temperature exceeds a pre-set threshold, helping you to identify potential safety hazards in a timely manner.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 13,000.00

Quantity:

Add to my wishlist

More info

Technical Data
Display	4.3” LCD Touch (800×480)
IR resolution(Pixels)	640×480
Super resolution	√(1280×960)
Spectral range	7.5~14μm
Pixel size	12μm
Frame rate	30Hz
Thermal sensitivity(NETD)	≤40mK
Focus	Manual / Automatic / Touch autofocus / Continuous autofocus
Lens recognition	Automatic
Infrared lens	Standard lens	Marco lens (Optional)	Wide-angle lens (Optional)	Medium tele lens (Optional)	Tele lens (Optional)	High-temp lens (optional)
Lens focal length	17.7mm	16.2mm	10.0mm	29.0mm	62.9mm	/
Field of view(FOV)	25°×19°	/	44°×34°	15°×11°	7°×5°	25°×19°
Temperature measurement range	Support auto-switching: -40°C~150°C, 0°C ~650°C
Temperature measurement range	500°C ~2000°C (Optional Hi-temp. Lens)
Accuracy	±2℃ or ±2% whichever is greater
Functions
Color palettes	White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized
Image modes	Thermal, Visual image, Fusion, PIP
On screen analyzer	16 Points/16 Lines/16 Rectangles/16 Circles
Isotherm	Automatic, Semi-automatic, Manual
Level & Span	√
Image outline	√
Panoramic stitching	√
Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	√
All-around voice assistant	√
Annotation	Text, Voice, Image
Digital camera resolution	13MP
Digital zoom	1.1x~20x
Video recording	√
Voice recording	√
Wi-Fi / Wi-Fi live streaming	√
Bluetooth	√
GPS	√
Laser pointer / LRF	√
LED lighting	√
Analysis software	PC+APP
General Characteristics
Battery	3350mAh detachable Li-ion battery pack
Operating time	≥4 hours (with Wi-Fi off)
USB	Type-C
Storage	64GB Internal & 64GB Micro SD card
Image storage format	Jpg
Video storage format	MP4 & Irgd
Protection	IP54 & 2m
Languages	ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR
Weight	≤1.15KG (included standard lens & battery)
Dimension	292mm×125mm×125mm
