UTi384J
New
UTi384J supports 384×288 pixel high resolution sensor, wide temperature measurement range of -40℃ to 650℃ (optional high-tem lens can reach 2000℃), flexible configuration and intelligent operation. This high resolution thermal camera can be widely used in many applications such as power detection, scientific research, building HVAC, intelligent manufacturing, steel metallurgy, electronic information.
UTi384J adopts 4.3″ LCD touch screen, making the function operation more intuitive and convenient. It provides a variety of focusing methods including automatic, touch, semi-automatic, laser, manual, and optional lenses to meet different application environments. This thermal imager supports dual-light picture and IR video recording. Reaching frame rate up to 30Hz, it allows users to capture temperature changes more accurately during video analysis.
In addition, UTi384J also supports 1-10 times continuous electronic zoom, panoramic stitching, laser ranging (0.1-40m), Bluetooth (For image transmission), voice control, and high & low temperature alarm function. Professional PC software and mobile phone APP are offered. Through hotspot connection, it allows user to analyze stored images and generate reports anytime and anywhere.
3 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 800 loyalty points. Your cart will total 800 points that can be converted into a voucher of S$ 160.00.

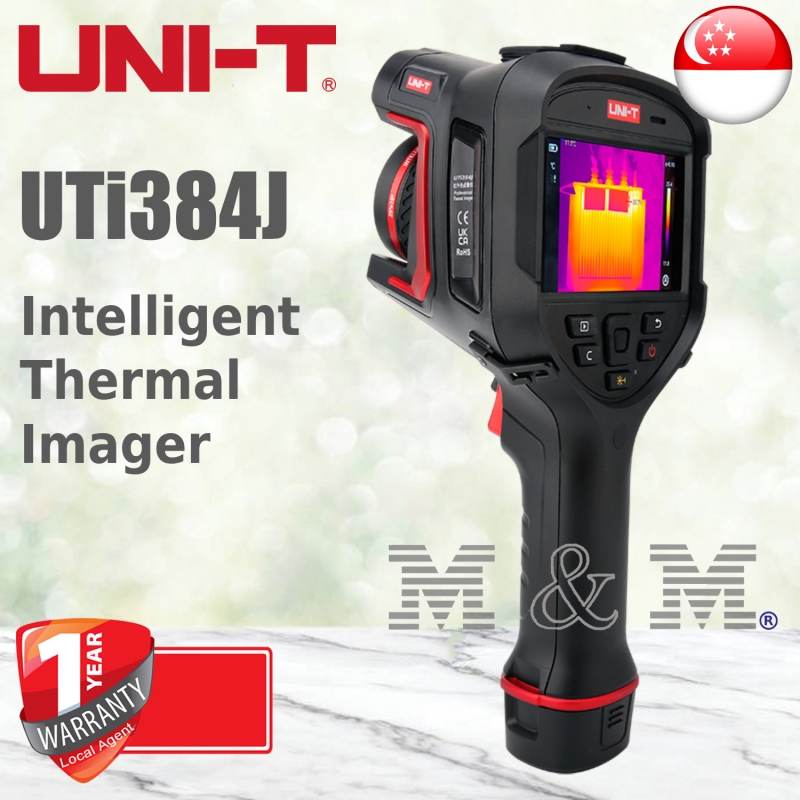

UNI-T UTi384J Professional Enhanced Thermal Imager
UTi384J supports 384×288 pixel high resolution sensor, wide temperature measurement range of -40℃ to 650℃ (optional high-tem lens can reach 2000℃), flexible configuration and intelligent operation. This high resolution thermal camera can be widely used in many applications such as power detection, scientific research, building HVAC, intelligent manufacturing, steel metallurgy, electronic information.
UTi384J adopts 4.3″ LCD touch screen, making the function operation more intuitive and convenient. It provides a variety of focusing methods including automatic, touch, semi-automatic, laser, manual, and optional lenses to meet different application environments. This thermal imager supports dual-light picture and IR video recording. Reaching frame rate up to 30Hz, it allows users to capture temperature changes more accurately during video analysis.
In addition, UTi384J also supports 1-10 times continuous electronic zoom, panoramic stitching, laser ranging (0.1-40m), Bluetooth (For image transmission), voice control, and high & low temperature alarm function. Professional PC software and mobile phone APP are offered. Through hotspot connection, it allows user to analyze stored images and generate reports anytime and anywhere.
Recipient :
* Required fields
or Cancel
Technical Data | |||||||
Display | 4.3” LCD Touch (800×480) | ||||||
IR resolution(Pixels) | 384×288 | ||||||
Super resolution | √(768×576) | ||||||
Spectral range | 7.5~14μm | ||||||
Pixel size | 12μm | ||||||
Frame rate | 30Hz | ||||||
Thermal sensitivity(NETD) | ≤40mK | ||||||
Focus | Manual / Automatic / Touch autofocus / Continuous autofocus | ||||||
Lens recognition | Automatic | ||||||
Infrared lens | Standard lens | Marco lens (Optional) | Wide-angle lens (Optional) | Medium tele lens (Optional) | Tele lens (Optional) | High-temp lens (optional) | |
Lens focal length | 17.7mm | 16.2mm | 10.0mm | 29.0mm | 62.9mm | / | |
Field of view(FOV) | 25°×19° | / | 44°×34° | 15°×11° | 7°×5° | 25°×19° | |
Temperature measurement range | Support auto-switching: -40°C~150°C, 0°C ~650°C | ||||||
500°C ~2000°C (Optional Hi-temp. Lens) | |||||||
Accuracy | ±2℃ or ±2% whichever is greater | ||||||
Functions | |||||||
Color palettes | White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia, Green Hot, Ice and Fire, Amber, Customized | ||||||
Image modes | Thermal, Visual image, Fusion, PIP | ||||||
On screen analyzer | 10 Points/10 Lines/10 Rectangles/10 Circles | ||||||
Isotherm | Automatic, Semi-automatic, Manual | ||||||
Level & Span | √ | ||||||
Image outline | √ | ||||||
Panoramic stitching | √ | ||||||
Hi/Lo temperature alarm | LCD animation, LED flashlight, Buzzer | ||||||
Hi/Lo temperature tracking | √ | ||||||
All-around voice assistant | √ | ||||||
Annotation | Text, Voice, Image | ||||||
Digital camera resolution | 8MP | ||||||
Digital zoom | 1.1x~10x | ||||||
Video recording | √ | ||||||
Voice recording | √ | ||||||
Wi-Fi / Wi-Fi live streaming | √ | ||||||
Bluetooth | √ | ||||||
GPS | √ | ||||||
Laser pointer / LRF | √ | ||||||
LED lighting | √ | ||||||
Analysis software | PC+APP | ||||||
General Characteristics | |||||||
Battery | 3350mAh detachable Li-ion battery pack | ||||||
Operating time | ≥5 hours (with Wi-Fi off) | ||||||
USB | Type-C | ||||||
Storage | 64GB Internal & 64GB Micro SD card | ||||||
Image storage format | Jpg | ||||||
Video storage format | MP4 & Irgd | ||||||
Protection | IP54 & 2m | ||||||
Languages | ZH_hans, ZH_hant, EN, FR, DE, ES, IT, RU, PL, KR, PT, TR, TH, NO, CZ, HU, JP, AR | ||||||
Weight | ≤1.15KG (included standard lens & battery) | ||||||
Dimension | 292mm×125mm×125mm |
