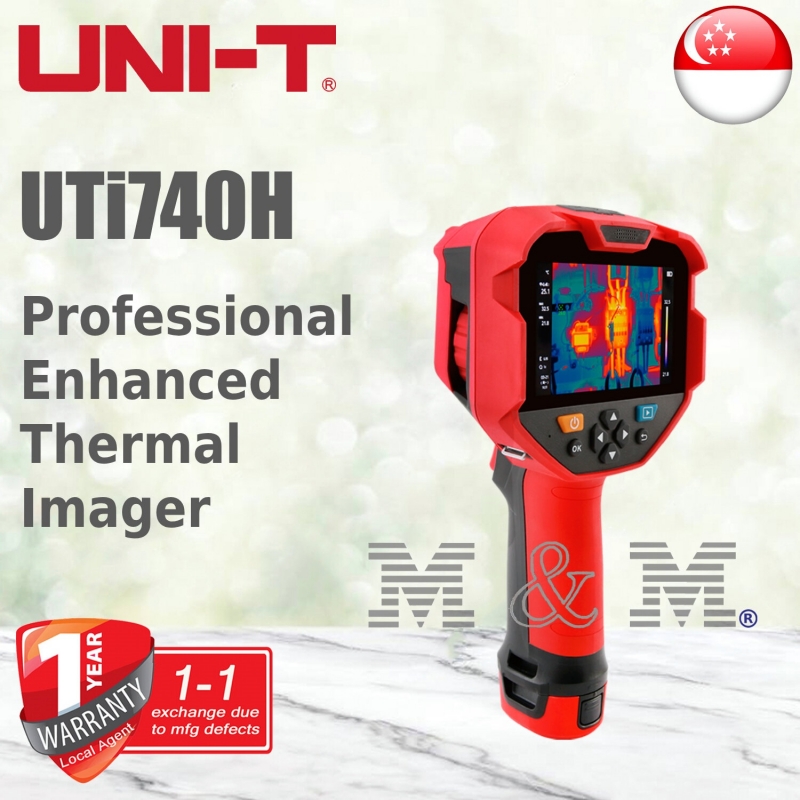

UNI-T UTi740H Professional Enhanced Infrared Thermal Imager

Model UTi740H

Condition New

UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. UTi740H thermal camera is also with other features :such as WiFi capability ,Isotherm, on screen analyzer,etc. It is a perfect troubleshooting tools for many industrial applications.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 248 loyalty points. Your cart will total 248 points that can be converted into a voucher of S$ 49.60.

Send to a friend

Send to a friend

UNI-T UTi740H Professional Enhanced Infrared Thermal Imager

UTi740H is a professional enhanced thermal camera that specially designed for industrial use with wide temperature range:-30℃~650℃. Its large 4.3 ” IPS display screen can clearly display 384×288 IR resolution and 5MP digital camera.The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. UTi740H thermal camera is also with other features :such as WiFi capability ,Isotherm, on screen analyzer,etc. It is a perfect troubleshooting tools for many industrial applications.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 2,488.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	384×288
Display	4.3″ IPS (800×480)
Field of view(FOV)	28°×21°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	1.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Manual
Temperature measurement range	-30℃ ~ 650℃
Accuracy	-20℃ ~ 650℃, ±2℃ or ±2% whichever is greater (ambient temperature at 25℃)
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	5 Points/1 Line/5 Rectangles/5 Circles
Digital camera resolution	5MP
Digital zoom	2x, 4x
Hi/Lo temperature alarm	Icon
Isotherm	Auto/Manual
Software analysis	PC+APP
Wi-Fi	√
General Characteristics
Battery	Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time	About 5 hours (with Wi-Fi off)
USB	Type-C
IP rating	IP54
Drop proof	2m
Storage	32G Micro SD card
Image/Video storage format	BMP
Certificates	CE,UKCA,FCC,RoHS
Product net weight	806g
Product size	266.02mm×126.66mm×136mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual, Li-ion battery pack, Hand strap
