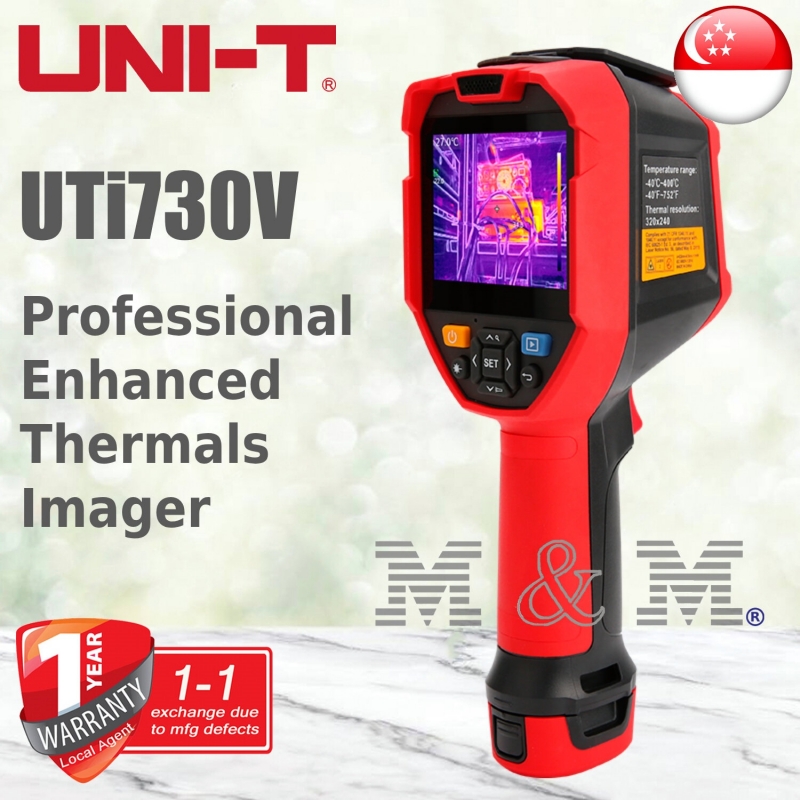

UNI-T UTi730V Professional Enhanced Infrared Thermal Imager

UTi730V

New

V series features a 5MP digital camera and 3.5′ touch display screen to improve the working efficiency and imaging quality. Build-in laser ranging function meets the need of measuring targets in a safety distance. In functions, video & voice recording and Wi-Fi live streaming are added to make the device more playable. It is a reliable measurement tools widely used in industrial field.

It can be equipped with macro lens UT-Z003 (Optional), the recommended distance is 4 cm.

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 148 loyalty points. Your cart will total 148 points that can be converted into a voucher of S$ 29.60.


S$ 1,488.00

Add to my wishlist

More info

Technical Data
Display 3.5″ IPS Touch (640×480)
IR resolution(Pixels) 320×240
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤9Hz
Thermal sensitivity(NETD) ≤65mK
Focus Focus Free
Field of view(FOV) 56°(H) × 42°(V)
Temperature measurement range   -40℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Functions
Color palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes Thermal, Visual image, Fusion (T-Mix), PIP
On screen analyzer 5 Points/1 Line/3 Rectangles/3 Circles
Isotherm Auto/Manual
Hi/Lo temperature alarm LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking √
Digital camera resolution 5MP
Digital zoom 2x, 4x
Video recording √
Voice recording √
Wi-Fi √
Wi-Fi live streaming √
LED lighting √
Laser pointer √
Laser distance measurement √
Analysis software PC+APP
General Characteristics
Battery 5200mAh detachable Li-ion battery pack (UT-M17)
Operating time  ≥4 hours (with Wi-Fi off)
USB Type-C
Storage 32GB Micro SD card
Image storage format JPG
Video storage format AVI
Protection IP54 & 2m drop proof
Certificates CE, UKCA, FCC, RoHS
Languages EN, FR, DE, IT, ES, SV, PL, CZ
Weight 654g
Dimension 260mm×97mm×99mm
Packing Details
Standard accessories Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
