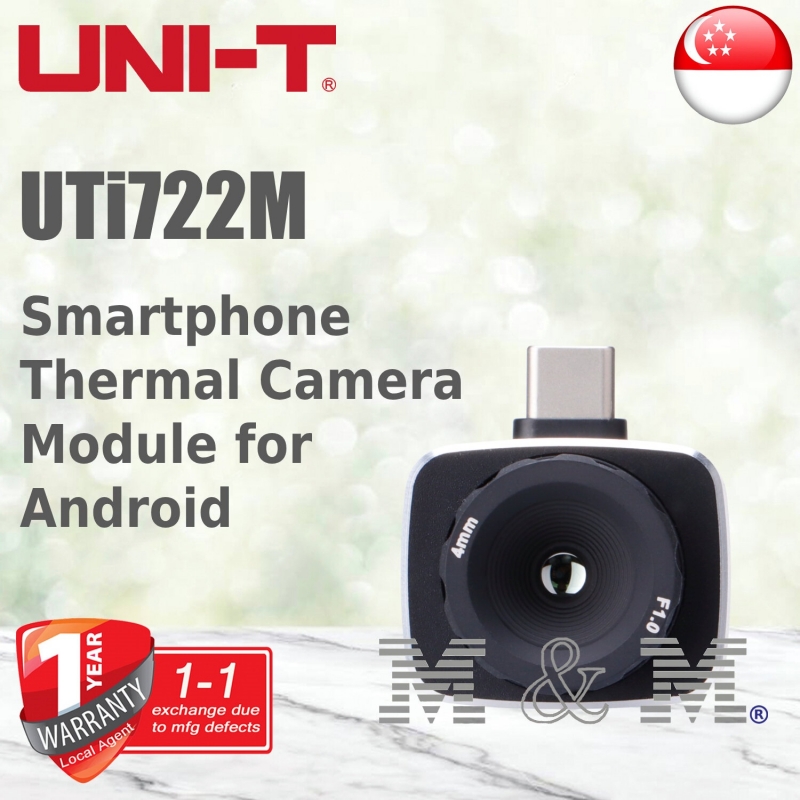

Uni-T UTi722M Smartphone Thermal Camera Module for Android

Model UTi722M

Condition New

UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens, which meets your needs of measuring the targets near or far. Plug & play with the user-friendly mobile APP “Thermal Mobile”, the practical functions comparable to professional thermal cameras. UTi722M is a desirable tool for HVAC, home life and adventure travel. lovers, engineers, contractors and builders, etc.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 38 loyalty points. Your cart will total 38 points that can be converted into a voucher of S$ 7.60.

Send to a friend

Send to a friend

Uni-T UTi722M Smartphone Thermal Camera Module for Android

UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens, which meets your needs of measuring the targets near or far. Plug & play with the user-friendly mobile APP “Thermal Mobile”, the practical functions comparable to professional thermal cameras. UTi722M is a desirable tool for HVAC, home life and adventure travel. lovers, engineers, contractors and builders, etc.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 388.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution(Pixels)	256×192
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK @25℃
Focus	Manual Focus
Lens size	21.5mm
Lens focal length	4.0mm
Field of view(FOV)	44.92°(H) × 33.42°(V)
Measurement modes	Industry & EST screening
Temperature measurement range	-20℃~450℃
Accuracy	Industry: ±2℃ or ±2% whichever is greater (0℃~450℃) EST: ±0.5℃ (30℃~40℃)
Functions
Color palettes	Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
On screen analyzer	3 Points/3 Lines/3 Rectangles
Isotherm	Auto/Below/Above/Section/Manual
Hi/Lo temperature alarm	LCD animation & Buzzer
Hi/Lo temperature tracking	√
Video recording	√
General Characteristics
USB	Type-C
Image storage format	JPEG
Video storage format	MP4
Certificates	CE, UKCA, FCC, RoHS
Languages	ZH, EN, FR, DE, IT, ES, SV
Weight	Approx. 30g
Dimension	29.5mm×24.5mm×29.5mm
Packing Details
Standard accessories	Type-C extension cable, Hand Strap, Cleaning Cloth,, Cloth Bag, English manual, Documents Download Operation Guide
