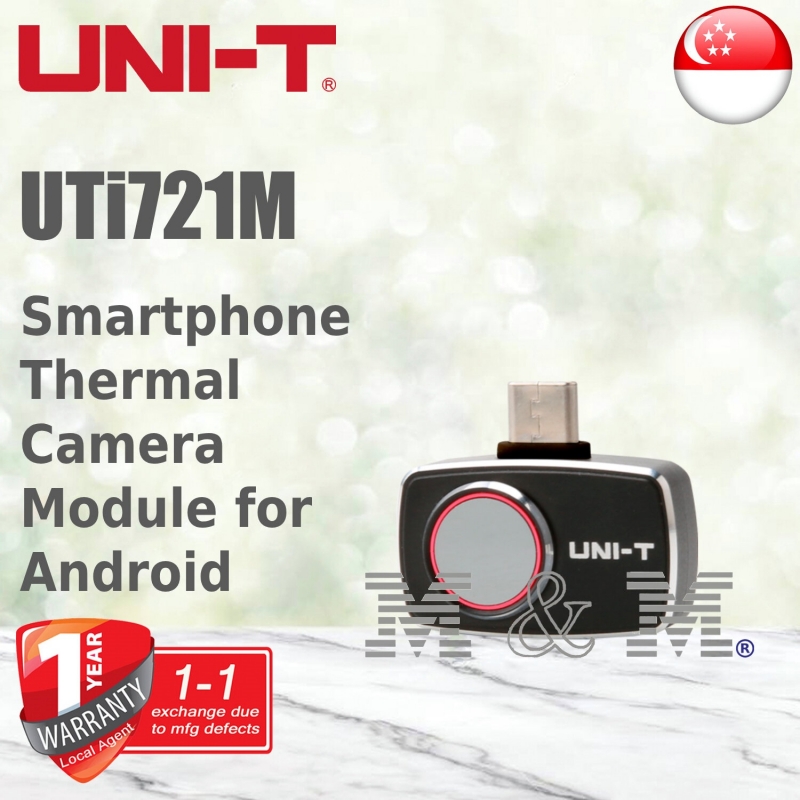

Uni-T UTi721M Smartphone Thermal Camera Module for Android

Model UTi721M

Condition New

UTi721M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi721M is with wide temperature measurement range -20℃ ~ 550℃. It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 35 loyalty points. Your cart will total 35 points that can be converted into a voucher of S$ 7.00.

Send to a friend

Send to a friend

Uni-T UTi721M Smartphone Thermal Camera Module for Android

UTi721M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi721M is with wide temperature measurement range -20℃ ~ 550℃. It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 350.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	256×192
Field of view(FOV)	56.0°×42.2°
Thermal sensitivity(NETD)	≤50mK @25℃
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus free
Lens focal length	3.2mm
Temperature measurement range	-20℃ ~ 550℃
Temperature scale	Low gain: -20℃~150℃ High gain: 0℃~550℃
Measurement modes	Industry, EST(Elevated Skin Temperature)
Accuracy	Industry: ±2° or ±2% whichever is greater (0℃~550℃) EST: ±0.5° (30℃~40℃)
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes	Thermal,Fusion,PIP
On screen analyzer	3 Points/3 Lines/3 Rectangles
Hi/Lo temperature alarm	√
Video recording	√
General Characteristics
USB	Type-C
Drop proof	1m
Image/Video storage format	JPEG, MP4
Certificates	CE,UKCA,FCC,RoHS
Product net weight	12g
Product size	33mm×28.2mm×11.3mm
Packing Details
Standard accessories	USB cable, English manual, Documents download operation guide card; Macro Lens–UT-Z005 (Optional)
