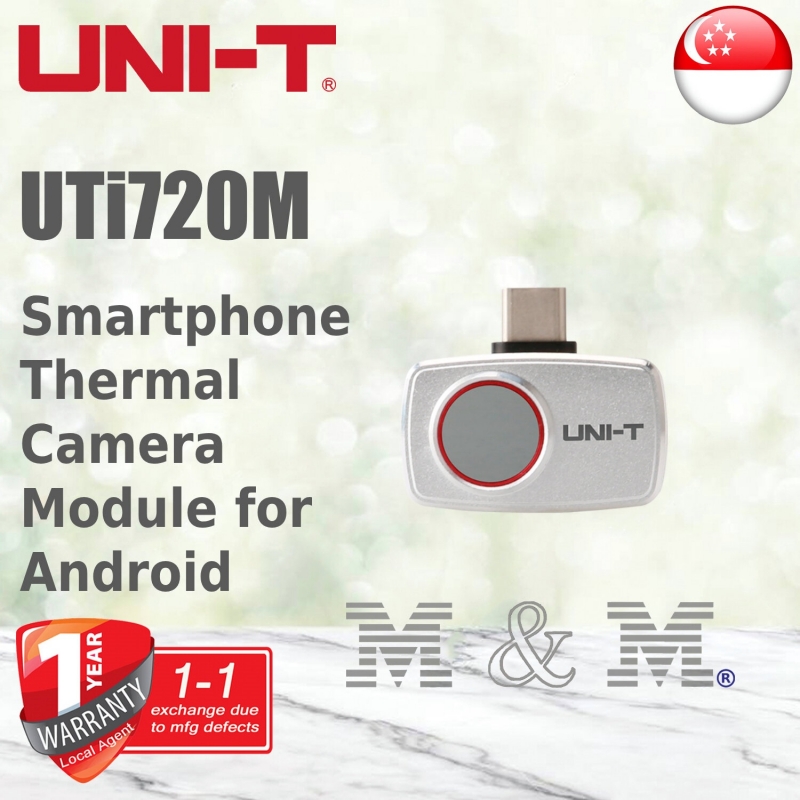

Uni-T UTi720M Smartphone Thermal Camera Module for Android

Model UTi720M

Condition New

UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.

It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 28 loyalty points. Your cart will total 28 points that can be converted into a voucher of S$ 5.60.

Send to a friend

Send to a friend

Uni-T UTi720M Smartphone Thermal Camera Module for Android

UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.

It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 288.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	256×192
Field of view(FOV)	56.0°×42.2°
Thermal sensitivity(NETD)	≤50mK @25℃
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus free
Lens focal length	3.2mm
Temperature measurement range	-20℃ ~ 200℃
Accuracy	±2° or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes	Thermal,Fusion,PIP
On screen analyzer	3 Points/3 Lines/3 Rectangles
Hi/Lo temperature alarm	√
Video recording	√
General Characteristics
USB	Type-C
Drop proof	1m
Image/Video storage format	JPEG, MP4
Certificates	CE,UKCA,FCC,RoHS
Product net weight	12g
Product size	33mm×28.2mm×11.3mm
Packing Details
Standard accessories	USB cable, English manual, Documents download operation guide card; Macro Lens–UT-Z005 (Optional)
