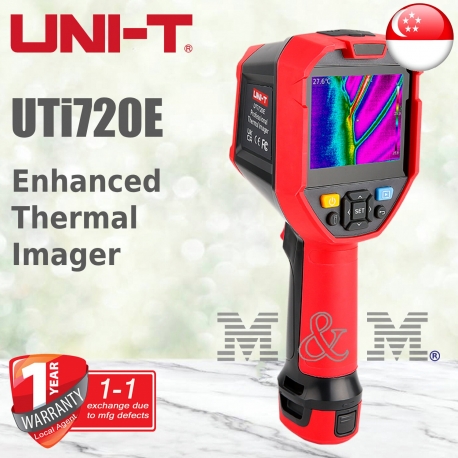

UNI-T UTi720E Enhanced Infrared Thermal Imager

Model UTi720E

Condition New

UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Write a review

By buying this product you can collect up to 64 loyalty points. Your cart will total 64 points that can be converted into a voucher of S$ 12.80.

Send to a friend

Send to a friend

UNI-T UTi720E Enhanced Infrared Thermal Imager

UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 640.00

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	256×192
Display	3.5‘’IPS (640×480)
Field of view(FOV)	56°×42.2°
Thermal sensitivity(NETD)	≤50mK
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	5 Points/1 Line/3 Rectangles/3 Circles
Digital camera resolution	2MP
Digital zoom	2x, 4x
Hi/Lo temperature alarm	Icon,LED flashlight
Isotherm	6 (Auto/Ratio/Below/Above/Section/Manual)
Software analysis	PC+APP
Wi-Fi	√
General Characteristics
Battery	Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time	≥ 3 hours (with Wi-Fi off)
USB	Type-C
IP rating	IP54
Drop proof	2m
Storage	16GB Micro SD card
Image/Video storage format	JPEG
Certificates	CE,UKCA,FCC,RoHS
Product net weight	654g
Product size	260mm×97mm×99mm
Packing Details
Standard accessories	Micro SD card,Type-C USB cable, English manual, Li-ion battery pack,Documents download operation guide card
