New

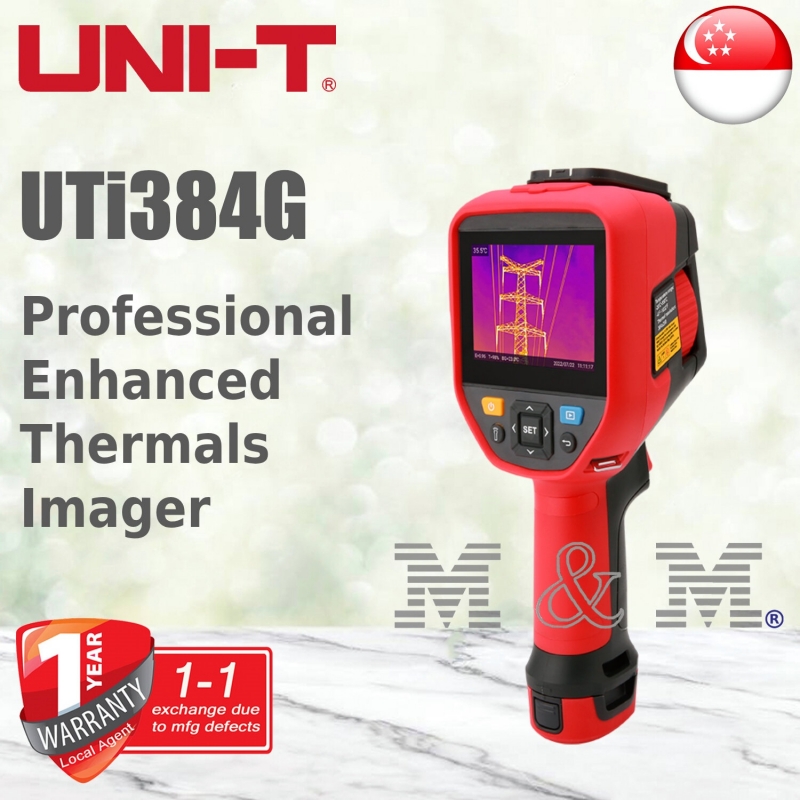

UNI-T UTi384G Professional Enhanced Thermal Imager

Model UTi384G

Condition New

UTi384G is a professional enhanced thermal cameras that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also support various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer, Isotherm, etc. They are perfect troubleshooting tools for many industrial applications.

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Write a review

By buying this product you can collect up to 310 loyalty points. Your cart will total 310 points that can be converted into a voucher of S$ 62.00.

Send to a friend

Send to a friend

UNI-T UTi384G Professional Enhanced Thermal Imager

UTi384G is a professional enhanced thermal cameras that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also support various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer, Isotherm, etc. They are perfect troubleshooting tools for many industrial applications.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 3,100.00

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	384×288
Display	3.5‘’ Touch (640×480)
Field of view(FOV)	42°×30°
Thermal sensitivity(NETD)	≤40mK
Spatial resolution(IFOV)	1.91mrad
Frame rate	≤30Hz
Spectral range	7.5~14µm
Focus	Manual
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	5 Points/5 Lines/5 Rectangles/5 Circles
Digital camera resolution	5MP
Digital zoom	2x, 4x
Hi/Lo temperature alarm	Icon
Isotherm	Auto/Manual/Above/Below/Section
Software analysis	PC+APP
Video recording	√
Voice recording	√
Wi-Fi / Bluetooth	√/√
Laser pointer	√
General Characteristics
Battery	Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time	About 5 hours (with Wi-Fi off)
USB	Type-C
IP rating	IP54
Drop proof	2m
Storage	8GB Internal 32GB External
Image/Video storage format	pic: JPEG; video: MP4/irgd
Certificates	CE,UKCA,FCC,RoHS
Product net weight	880g
Product size	261mm×104mm×97mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card
