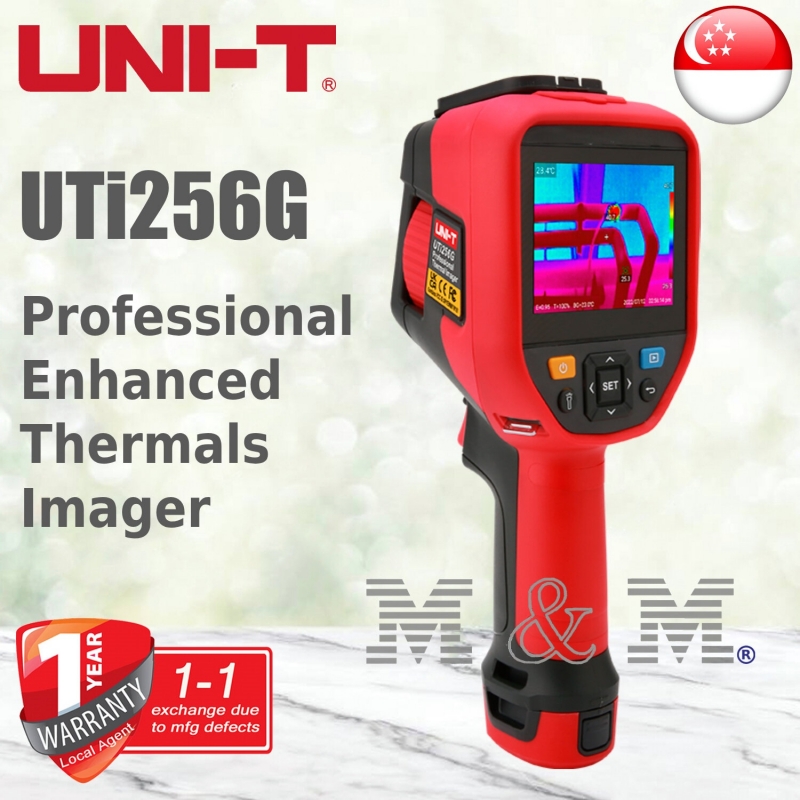

UNI-T UTi256G Professional Enhanced Thermal Imager

UTi256G

New

UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer, etc. They are perfect troubleshooting tools for many industrial applications.

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 280 loyalty points. Your cart will total 280 points that can be converted into a voucher of S$ 56.00.


S$ 2,800.00

More info

Technical Data
IR resolution (Pixels) 256×192
Display 3.5‘’ Touch (640×480)
Field of view(FOV) 28°×20°
Thermal sensitivity(NETD) ≤40mK
Spatial resolution(IFOV) 1.91mrad
Frame rate ≤30Hz
Spectral range 7.5~14µm
Focus Manual
Temperature measurement range   -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 3 Points/3 Lines/3 Rectangles/3 Circles
Digital camera resolution 5MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon
Isotherm Auto/Manual/Above/Below/Section
Software analysis PC+APP
Voice recording
Wi-Fi / Bluetooth √/√
Laser pointer
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time About 5 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 8GB Internal
32GB External
Image storage format JPEG
Certificates CE,UKCA,FCC,RoHS
Product net weight 880g
Product size 261mm×104mm×97mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card
