UTi32
New
UTi32 is a high temperature thermal camera that specially designed for higher temperature applications,such as: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spot. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, fusion,it also support PC software analysis, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.
1 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 28 loyalty points. Your cart will total 28 points that can be converted into a voucher of S$ 5.60.

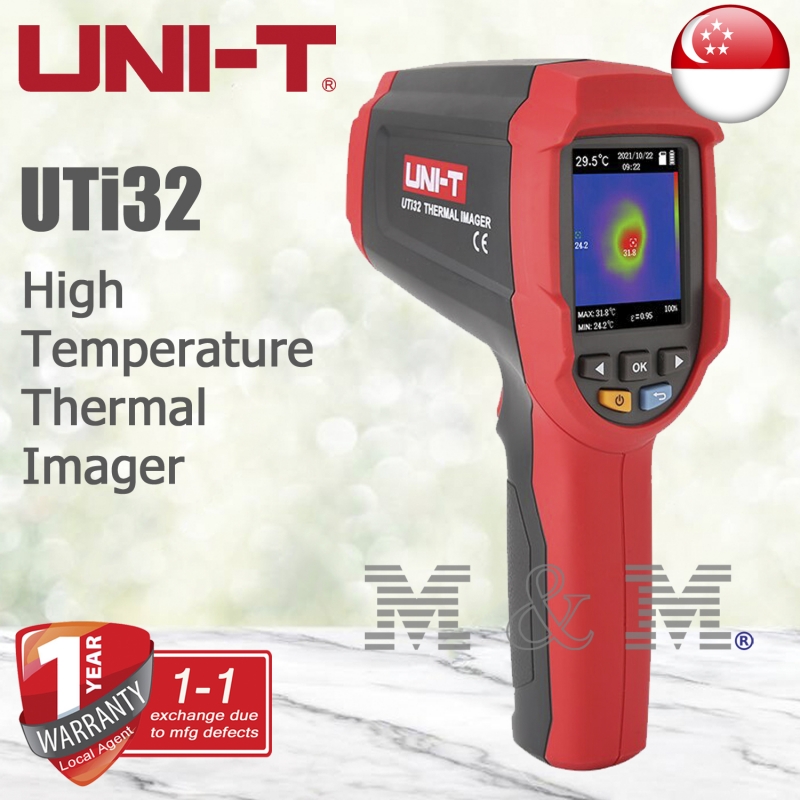

UNI-T UTi32 Infrared High Temperature Thermal Imager
UTi32 is a high temperature thermal camera that specially designed for higher temperature applications,such as: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spot. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, fusion,it also support PC software analysis, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.
Recipient :
* Required fields
or Cancel
Technical Data | |
IR resolution (Pixels) | 32×32 |
Display | 2.4″ IPS (480×320) |
Field of view(FOV) | 30°×30° |
Thermal sensitivity(NETD) | 0.15℃ |
Frame rate | ≤9Hz |
Focus | Focus free |
Temperature measurement range | -20℃ ~ 1000℃ |
Accuracy | ±2℃ or ±2% whichever is greater |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Color palettes | 3 (Ironbow, Rainbow, Black hot) |
Image modes | Thermal,Visual image,Fusion |
Digital camera resolution | 640×480 |
Hi/Lo temperature alarm | Icon |
Software analysis | PC |
General Characteristics | |
Battery | Fixed Li-ion battery (3.7V 2600mAh) |
Battery operation time | ≥7 hours |
USB | Type-C |
Storage | 16G Mirco SD card |
Image/Video storage format | BMP |
Certificates | CE,UKCA,FCC,RoHS |
Languages | ZH, EN |
Product net weight | 301g |
Product size | 205mmx124mmx65mm |
Packing Details | |
Standard accessories | Micro SD card, Type-C USB cable, English manual, Documents Download Operation Guide |
