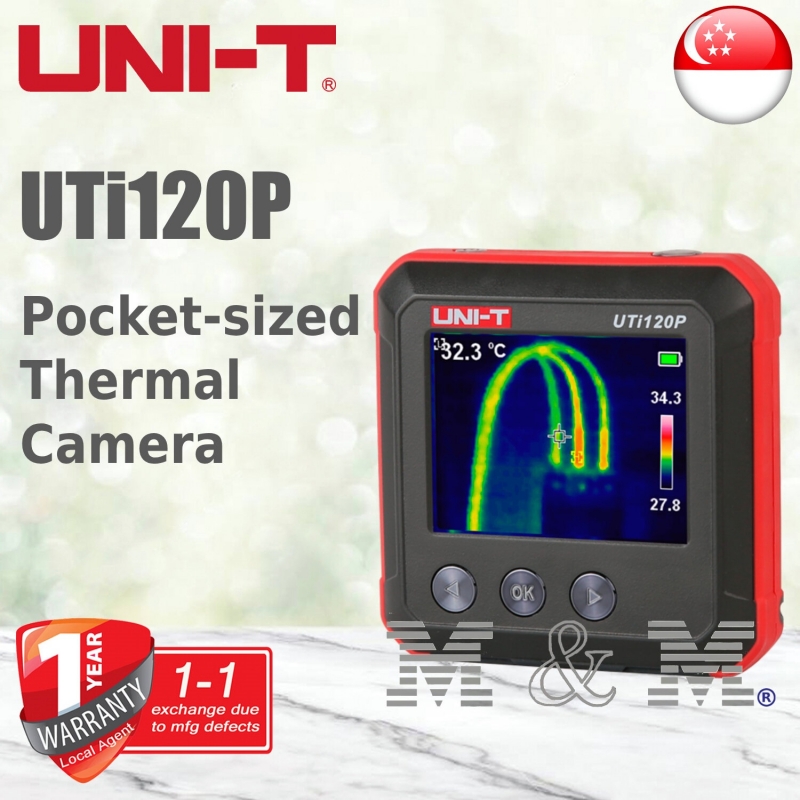

UNI-T UTi120P Pocket-sized Thermal Camera

Model UTi120P

Condition New

UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 32 loyalty points. Your cart will total 32 points that can be converted into a voucher of S$ 6.40.

Send to a friend

Send to a friend

UNI-T UTi120P Pocket-sized Thermal Camera

UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 328.00

Quantity:

Add to my wishlist

More info

Functions
☑ Color palettes: 3 (Ironbow, Grey, Rainbow) ☑ Auto tracking and alarm for high/low temperature ☑ PC software analysis ☑ Auto power off: 5/10/30mins(default)/off
Technical Data
IR resolution (Pixels)	120×90
Display	2.4” TFT LCD (320×240)
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
General Characteristics
Battery	Fixed Li-ion battery (3.7V 1350mAh)
Battery operation time	≥3.5 hours
USB	Micro USB
Drop proof	1m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,RoHS
Product net weight	125g
Product size	76mm×76mm×24mm
Packing Details
Standard accessories	Hand strap, Carrying bag, Micro SD card, Micro USB cable, English manual,Documents download operation guide card
