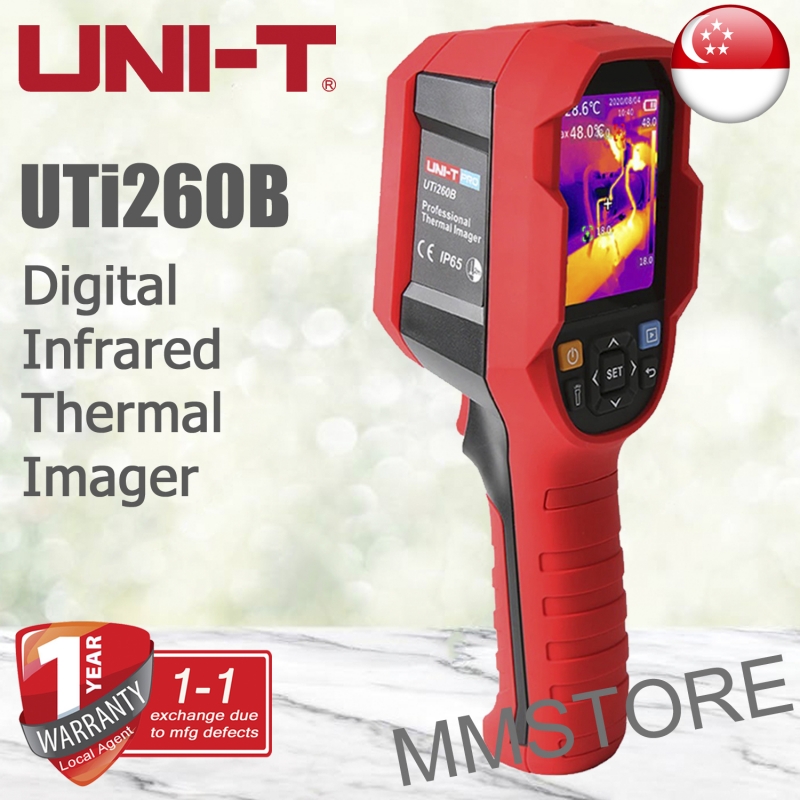

UNI-T UTi260B Infrared Thermal Imager -20℃~550℃

UTi260B

New

UNI-T Echo Thermal Imagers are more cost effective and also includes a wider temperature measurement range compared with the Classic series. Echo’s extra functions are digital camera and thermal blending on selected models. This series is also very user friendly and rugged enough to pass IP65and 2m drop tests.

1. Infrared resolution: 120x90 to 256x192
2. Display models: Thermal, Digital camera, Thermal blending, PiP on selected models
3. Temperature measurement range: -20℃~400℃ / -20℃~550℃
4. Cost effective

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 59 loyalty points. Your cart will total 59 points that can be converted into a voucher of S$ 11.80.


S$ 599.00

More info

Model UTi260B
General Characteristics
IR resolution 256x192 pixel
Screen Display 2.8”LCD
Field of view (FOV) 56°x 42°
Thermal sensitivity (NETD) 50mk
Spatial resolution (IFOV) 3.8mrad
Focus Focus free
Frame rate 25Hz
Object Temperature range  -20~550℃
Measurement accuracy ±2℃ or ±2% whichever is greater
Battery operating time 6hours
Founctions
Palettes 7
Emissivity Adjustable (0.01-0.99)
Measurement presets Point x3
Digital camera 648 x 488 pixels
Image Model Thermal,visible,blending,PiP
LED
ROI (eliminates interference)
Auto tracking for Lo/Hi temperature
Alarm
Storage 16G Micro SD Card
PC software Analysis, Real-time display
Protection IP65/2m
Communication interface Type-C
Package
Product net size 236mm x 75.5 mm x 86mm
Product net weight 910g
Standard accessories Micro SD card, Type-C USB cable, Manual
