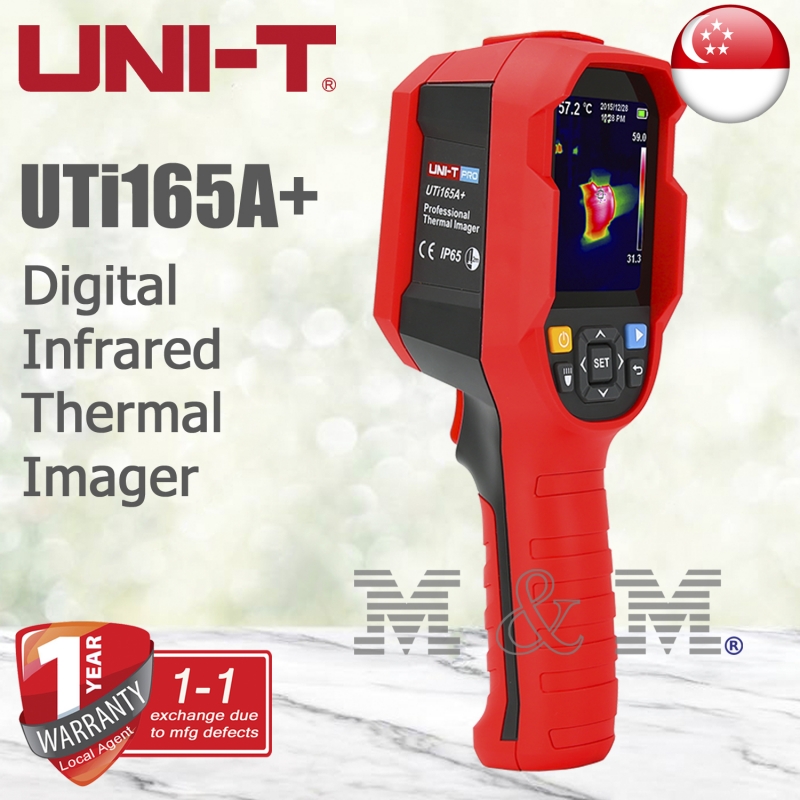

UNI-T UTi165A+ Infrared Thermal Imager -10℃~400℃

UTi165A+

New

UTi165A+ is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.

Features :

  • Durable and user-friendly
  • 8” TFT display screen (320×240 Pixels)
  • IR resolution: 160×120
  • Digital camera resolution:640×480
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • IP65
  • 2m drop proof

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

5 Items

By buying this product you can collect up to 57 loyalty points. Your cart will total 57 points that can be converted into a voucher of S$ 11.40.


S$ 579.00

More info

Technical Data
IR resolution (Pixels) 160×120
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 6.1mrad
Frame rate ≤9Hz
Spectral range 8~14µm
Focus Focus free
Temperature measurement range  -10℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes Thermal,Visual image,Fusion
On screen analyzer 3 Points
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon,LED flashlight
PC software analysis
General Characteristics
Battery Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time ≥ 7 hours
USB Type-C
IP rating IP65
Drop proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Certificates CE,FCC,RoHS
Product net weight 490g
Product size 236mm×75.5mm×86mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, Adapter, English manual,Documents download operation guide card
