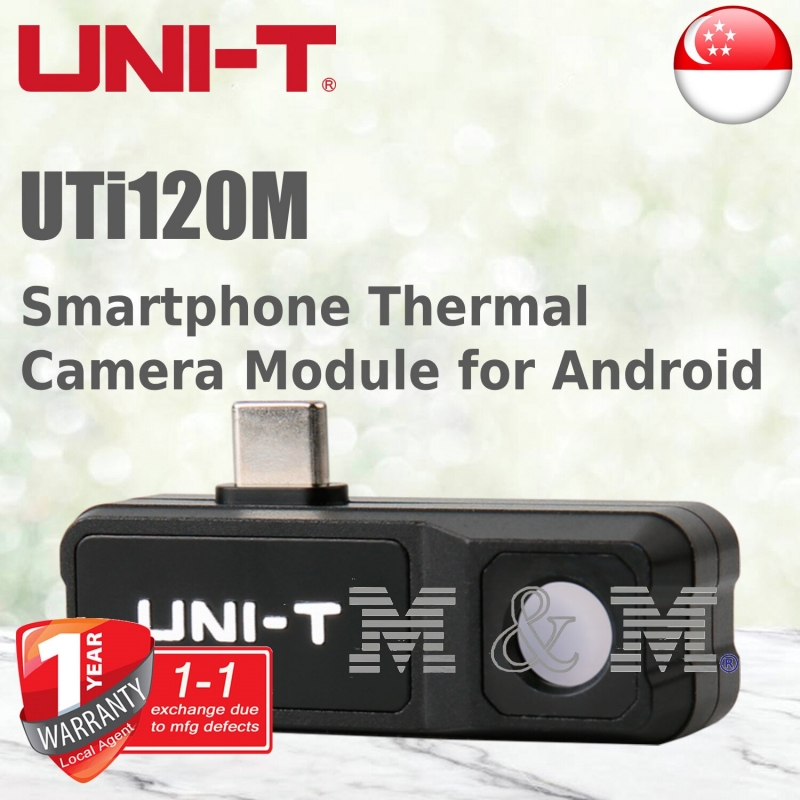

Uni-T UTi120M Smartphone Thermal Camera Module for Android

Model UTi120M

Condition New

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY home owners, outdoor lovers, engineers, contractors and builders etc.

More details

2 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of S$ 3.80.

Send to a friend

Send to a friend

Uni-T UTi120M Smartphone Thermal Camera Module for Android

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY home owners, outdoor lovers, engineers, contractors and builders etc.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 199.00

Quantity:

Add to my wishlist

More info

Technical Data
IR resolution (Pixels)	120×90
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK @25℃
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus free
Lens focal length	2.28mm
Temperature measurement range	-20℃ ~ 400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes	Thermal,Fusion,PIP
On screen analyzer	6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm	√
Video recording	√
General Characteristics
USB	Type-C
Drop proof	2m
Image/Video storage format	JPEG, MP4
Certificates	CE,UKCA,FCC,RoHS
Product net weight	25g
Product size	53mm×18.2mm×18.5mm
Packing Details
Standard accessories	Micro USB adapter, USB cable, English manual, Documents download operation guide card
