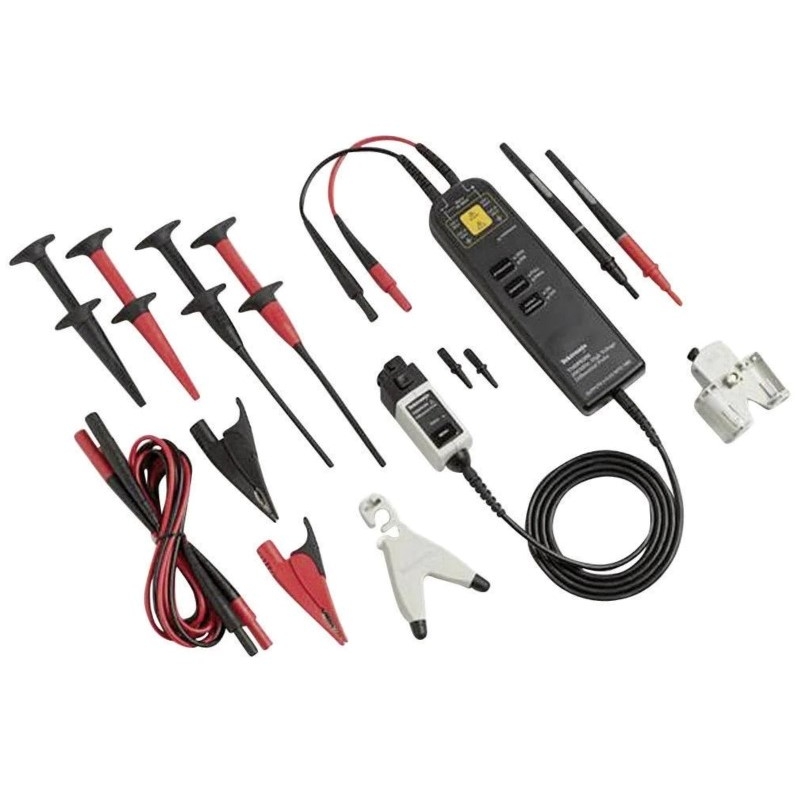

Tektronix P5200A High Voltage Differential Probe

Model P5200A

Condition New

Hurry, Selling Fast!

Availability date:

Tweet Share Google+

• Send to a friend

  Send to a friend



  Tektronix P5200A High Voltage Differential Probe

  A high voltage differential probe is used for measuring the voltage difference between two test points where neither test point is at ground.  High voltage differential probes from Tektronix can be used for signals up to 6000 V.  These probes are the best choice for making non-ground referenced, floating or isolated measurements in large part due to their common mode rejection capability. These products are designed, manufactured, and serviced by Tektronix.

  KEY PERFORMANCE SPECIFICATIONS

  • Bandwidths up to 200 MHz

  • Up to 6000 V differential (DC + pk AC)

  • Up to 2300 V common (RMS)

  KEY FEATURES

  • Overrange Indicator

  • Safety Certified

  • Switchable Attenuation

  • Switchable bandwidth limit

  Avail subj. to prior sales, otherwise lead time 6 to 8 weeks
