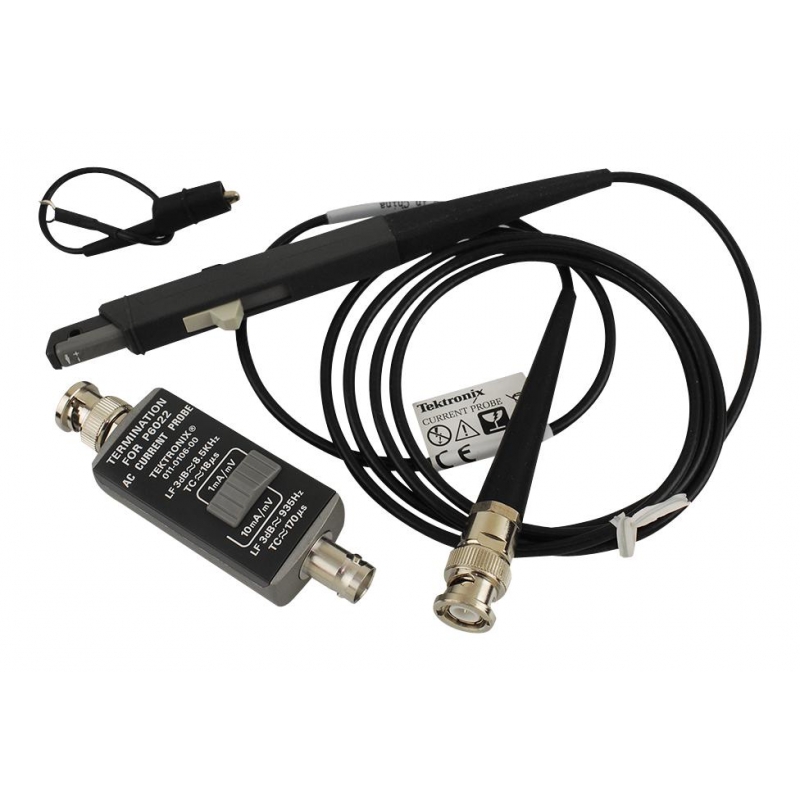

  Tektronix P6022 AC Current Probes

  The P6021 and P6022 Current Probes provide versatile AC current measurements. Both probes provide accurate current measurements over a wide range of frequencies. The P6021 and P6022 allow current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.

  KEY PERFORMANCE SPECIFICATIONS

  • P6022

    • 935 Hz to 120 MHz
    • 4 A RMS, 100 A peak, 1 mA sensitivity

  KEY FEATURES

  • For 1 MΩ inputs

  • Shielded probe head

  • AC only

  • Split core construction allows easy circuit connection

  • 1.5 m (5 ft) cable

  Avail subj. to prior sales, otherwise lead time 6 to 8 weeks
