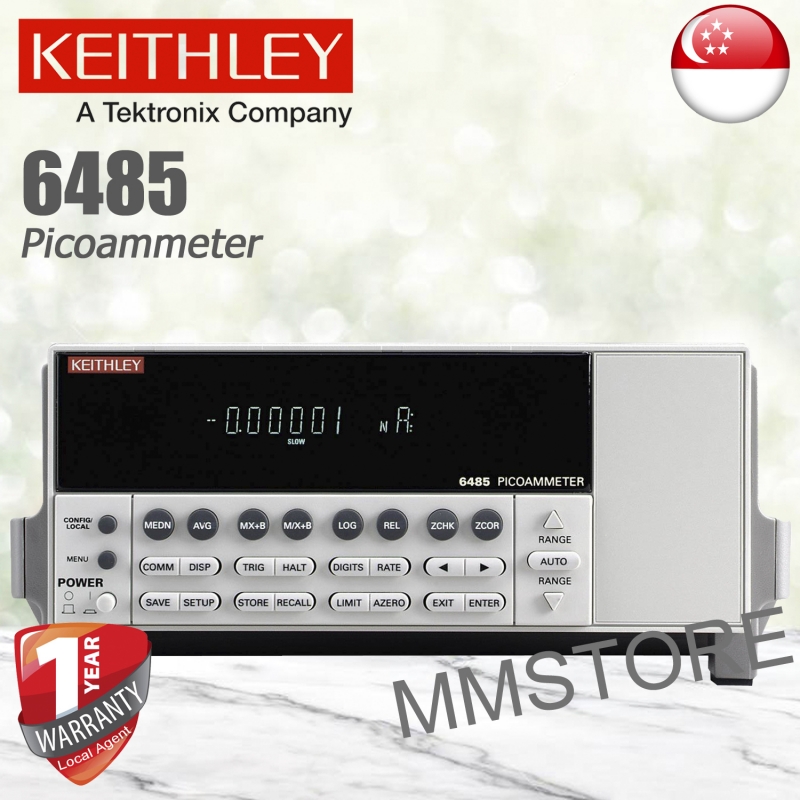

  Keithley 6485 Picoammeter

  The 5½-digit Model 6485 Picoammeter combines Keithley’s expertise in sensitive current measurement instrumentation with enhanced speed and a robust design. With eight current measurement ranges and high  peed autoranging, this costeffective instrument can measure currents from 20fA to 20mA, taking measurements at speeds up to 1000 readings per second. The Model 6485’s 10fA resolution and superior sensitivity make it well suited for characterizing low current phenomena, while its 20mA range lets it measure currents high enough for applications such as measuring 4-20mA sensor loops.

  • Cost-effective low current measurement solution
  • 10fA resolution
  • 5½-digit resolution
  • <200μV burden voltage
  • Up to 1000 readings/second
  • Built-in Model 485 emulation mode
  • IEEE-488 and RS -232 interfaces
  • Analog output
