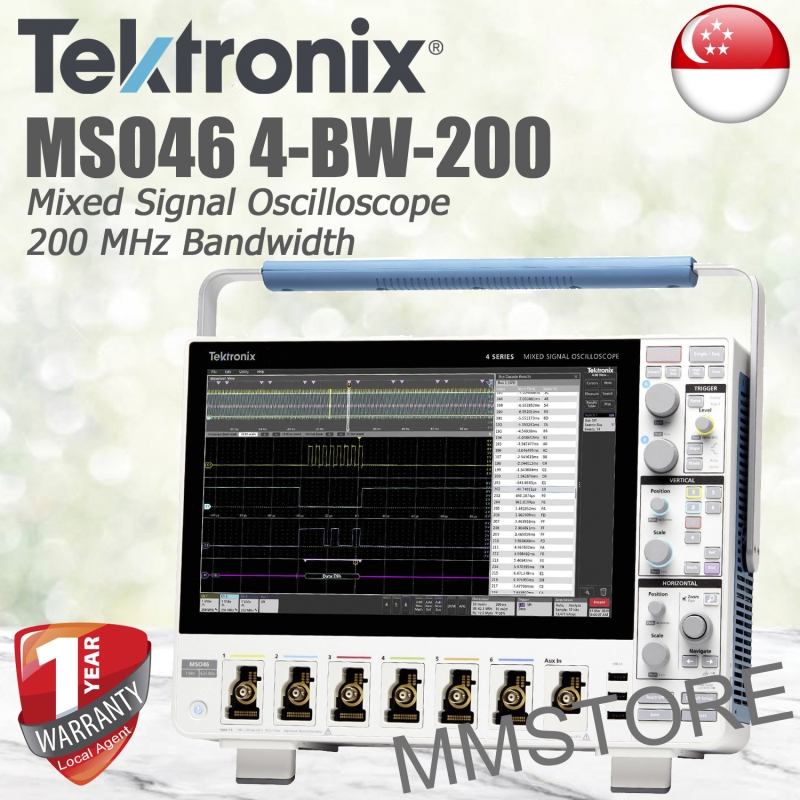

Tektronix MSO46B 4-BW-200 Mixed Signal Oscilloscope

Model MSO46B 4-BW-200

Condition New

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Hurry, Selling Fast!

Availability date:

Tweet Share Google+

• Send to a friend

  Send to a friend



  Tektronix MSO46B 4-BW-200 Mixed Signal Oscilloscope

  With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you'd expect.

  Input channels
  • 4 or 6 FlexChannel® inputs
  • Each FlexChannel provides:
  • One analog signal that can be displayed as a waveform view, a
  spectrum view1, or both simultaneously
  • Eight digital logic inputs with TLP058 logic probe
  Bandwidth (all analog channels)
  • 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)
  Sample rate (all analog / digital channels)
  • Real-time: 6.25 GS/s
  Record length (all analog / digital channels)
  • 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
  Waveform capture rate
  • >500,000 waveforms/s
  Vertical resolution
  • 12-bit ADC
  • Up to 16-bits in High Res mode

  Avail subj. to prior sales, otherwise lead time 6 to 8 weeks
