UTD2072CL
New
The UTD2000CL Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive,fully in line with the traditional instrument usage habits, and is convenient for users to operate
1. 70MHz bandwidth
2. 500MS/S real-time sampling rate
3. Low noise, wide vertical range: lmV/div~20V/div
4. System software upgradable with USB drive
5. Auto measurements of 28 waveform parameters
6. More than 2,000wfms/s waveform capture rate
7. 7-inch TFT LCD, WVGA (400X 240)
0 Item Items
Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 31 loyalty points. Your cart will total 31 points that can be converted into a voucher of S$ 6.20.

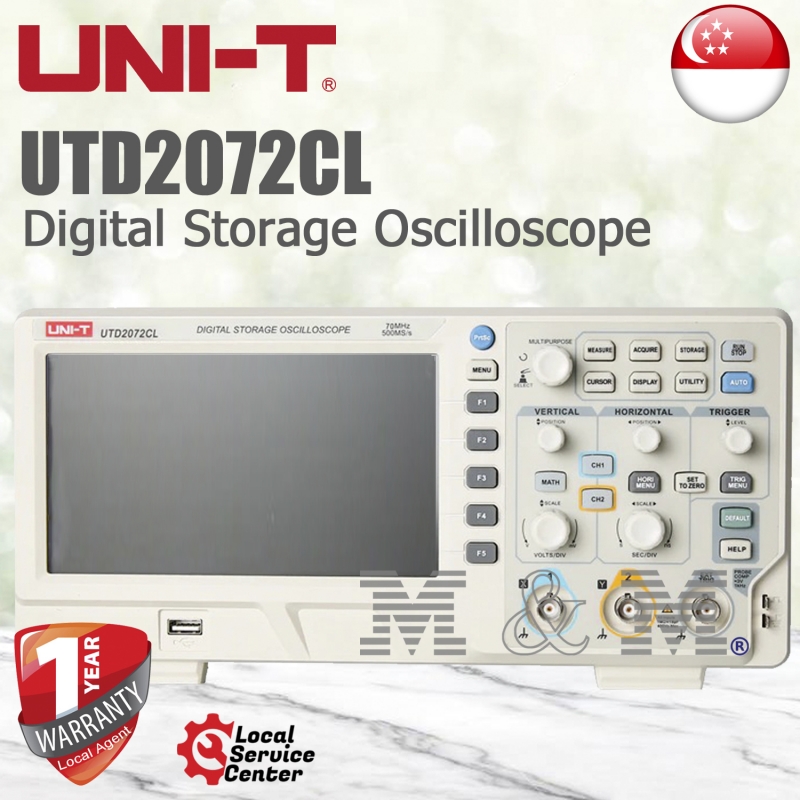

UNI-T UTD2072CL, 2ch 70MHz Digital Storage Oscilloscope (FOC Calibration Cert)
The UTD2000CL Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive,fully in line with the traditional instrument usage habits, and is convenient for users to operate
1. 70MHz bandwidth
2. 500MS/S real-time sampling rate
3. Low noise, wide vertical range: lmV/div~20V/div
4. System software upgradable with USB drive
5. Auto measurements of 28 waveform parameters
6. More than 2,000wfms/s waveform capture rate
7. 7-inch TFT LCD, WVGA (400X 240)
