Features of UT343E Coating Thickness Gauge
UT343E
New
Features of UT343E Coating Thickness Gauge
Certificates: CE, UKCA
● Bluetooth APP
● Conductive coating measurement (like chromium, zinc, tin)
● Voice broadcast
● Durable probe
● Automobile mode
● Multiple measurement modes
● PC software analysis
5 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 23 loyalty points. Your cart will total 23 points that can be converted into a voucher of S$ 4.60.

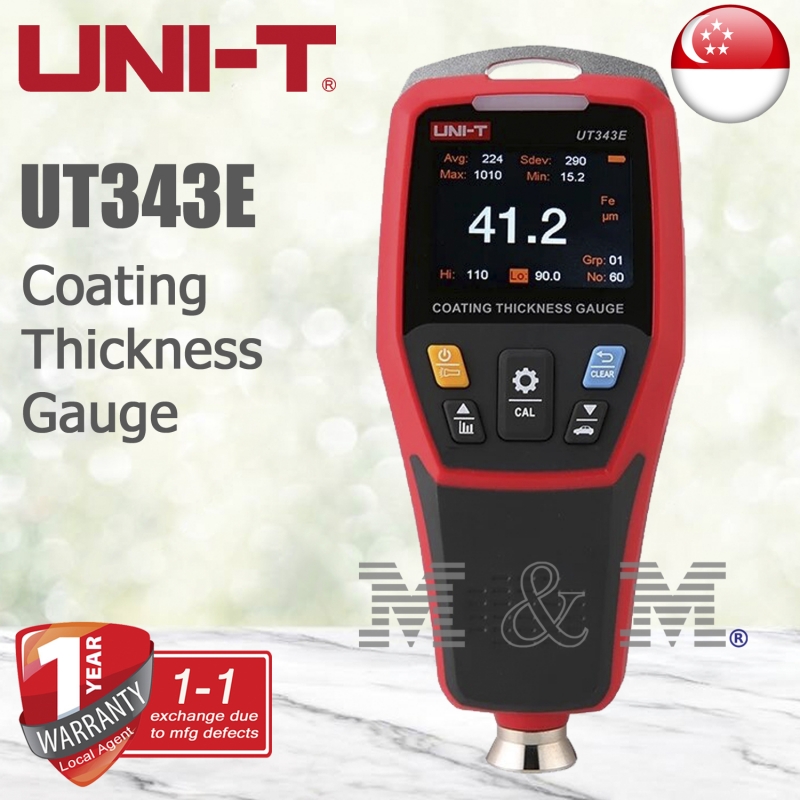

UNI-T UT343E Digital Thickness Gauge
Features of UT343E Coating Thickness Gauge
Certificates: CE, UKCA
● Bluetooth APP
● Conductive coating measurement (like chromium, zinc, tin)
● Voice broadcast
● Durable probe
● Automobile mode
● Multiple measurement modes
● PC software analysis
Recipient :
* Required fields
or Cancel
Specification | Range | Thickness | Resolution | Accuracy |
Certificates | CE/UKCA | |||
Ferrous and non-ferrous substrates measurement (FE and NFE) | 0~2000μm | 0~99.9μm | 0.1μm | ±(2%H+2μm) |
100~2000μm | 1μm | |||
0~78.7mil | 0~4.99mil | 0.01mil | ±(2%H+0.08mil) | |
5.0~78.7mil | 0.1mil | |||
Bluetooth and App function | √ | |||
Probe measuring force | 0.3~1.5N | |||
Display | 2”color TFT screen | |||
Auto rotatable screen | √ | |||
Unit conversion | μm/mil | |||
LED /Audio alarm | √ | |||
Limit setting | 0~2000μm | |||
Measurement method | Single/continuous | |||
Statistical measurement | Max/Min/Avg | |||
Matrix identification modes | Auto/manual | |||
Voice broadcast | √ | |||
Flashlight | √ | |||
USB communication | Upper computer communication | |||
Data storage | 3300 data | |||
LCD brightness control | √ | |||
Auto power off | 5 minutes | |||
Low battery indication | √ | |||
Power supply | 3.7V 1300mAh Lithium battery | |||
General Characteristics | ||||
Power | 3.7V 1300mAh Lithium battery | |||
LCD Size | 2 inch | |||
Product color | Red and Gray | |||
Product net weight | 150g | |||
Product size | 152*65*35mm | |||
Standard accessories | USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous matrix, Stand coating thickness sheets(6pcs) |
