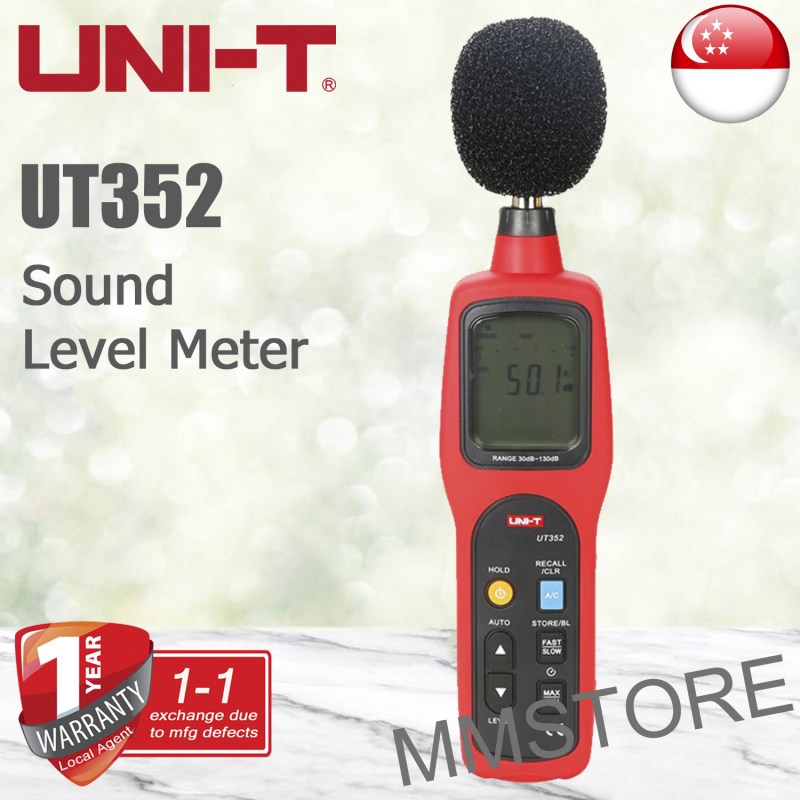

UNI-T UT352 Sound Level Meter

UT352

New

UNI-T’s UT352 Sound Level (30~130dB) Meter has auto range and data storage function, with high/lower alarm, analogue outputs and condenser microphone.
Applications:
Noise control, quality control, health care and all kind of environment noise testing.
1. MAX/MIN modes
2. Auto power off (cancelable)
3. 63 sets data storage
4. AC/DC analog signal output
5. Over/under range indication
6. Data hold, LCD backlight
7. Simulated analog bar
8. A (ear)/C (machine) weighting modes
9. Manual/auto range selectable
10. Fast/slow response rate (fast: 125ms, slow: 1s)
11. Powered by batteries or external power source

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

3 Items

Hurry, Selling Fast!

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of S$ 3.80.


S$ 190.00

More info

Specifications Range Best Accuracy
Model   UT352
Range 30~80dB ±1.5dB
50~100dB ±1.5dB
60~110dB ±1.5dB
80~130dB ±1.5dB
Frequency  31.5Hz~8000Hz √
Frequency Weighting A&C √
Sample Rate FAST: 8 Times/s √
SLOW: 1 Times/s √
Features
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600Ω  √
DC: 2Vrms full scale; 10mV/dB; Output impedance: around 100Ω  √
Data Hold   √
Auto Power Off   √
Low Battery Indication ≤4.8V √
MAX Mode   √
MIN Mode   √
Data Logging   63
High Alarm Display "OVER" √
Lower Alarm Display "UNDER" √
LCD Backlight   √
Analog Bar Graph 30~130dB √
General Characteristics
Power 1.5V Batteries (LR6) X 4
LCD Size 53mm X 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273mm X 70mm X 39mm
Standard Accessories Batteries, Windscreen, Leather Box
