UT661D
New
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
1 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 10 loyalty points. Your cart will total 10 points that can be converted into a voucher of S$ 2.00.

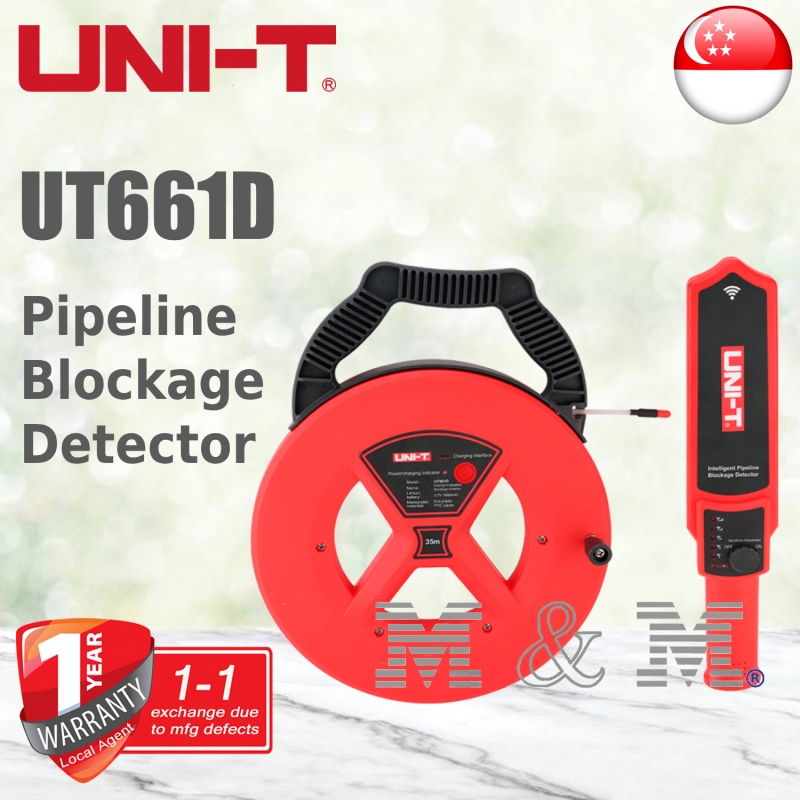

UNI-T UT661D Pipeline Blockage Detectors
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
Recipient :
* Required fields
or Cancel
Specifications | UT661D |
Transmitter | Yes |
Signal wire | 35m |
Receiver | Yes |
Maximum detection distance(depth) | 50cm |
Transmitter current | Shutdown current: <2uA, working current: 230~310mA |
Receiver current | Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm) |
Charging current | 450~550mA |
Test the output sound at a distance of 1cm | >93dB |
Test the output sound at a distance of 0.5m | >75dB |
Battery duration | 10 hours |
Operting temperature and humidity | -20°C~60°C, 10~80%RH |
Measurable pipe material | Plastic pipes, metal pipes |
Buzzing prompt | Yes |
Flash prompt | Yes |
Low battery indication | Yes |
Waterproof grade | Probe waterproof IP67 |
General Characteristics | |
Transmitter battery | Built-in lithium battery (3.7V 1800mAh) |
Receiver battery | Built-in lithium battery (3.7V 1800mAh) |
Color | Red and grey |
Weight | Transmitter: 1.42KG Receiver: 0.26KG |
External dimension | Tansmitter: 38x30x42mm Receiver: 40x38x80mm |
Standard accessories | Charging cable, Probe kit |
