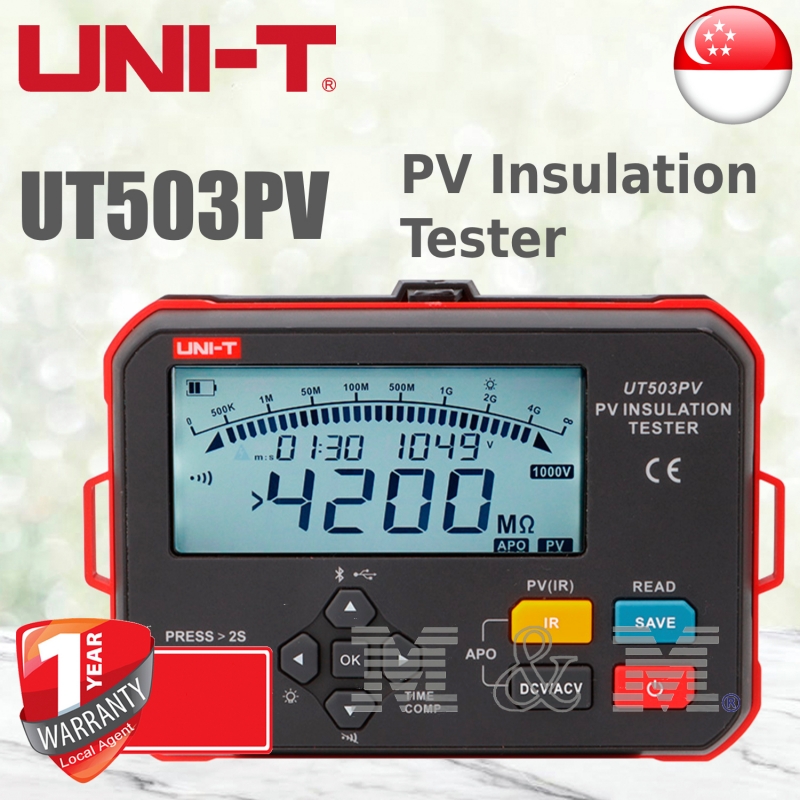

UNI-T UT503PV PV Insulation Tester

Model UT503PV

Condition New

UT503PV PV insulation resistance tester has the function of measuring photovoltaic live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on

Features of UT503PV PV Insulation tester

High output voltage: DC 1000V
UTD live test: DC 1000V
Insulation resistance (PV+IR): 4000MΩ
Voltage measurement: 1000V DC & 600V AC
Auto discharge
Stepping voltage
Time measurement
Compare function (IR)
High voltage alarm
Data communication: USB cable + Bluetooth app
Lithium battery
Portable & Convenient

More details

1 Item Items

Hurry, Selling Fast!

Write a review

By buying this product you can collect up to 44 loyalty points. Your cart will total 44 points that can be converted into a voucher of S$ 8.80.

Send to a friend
Send to a friend
UNI-T UT503PV PV Insulation Tester

UT503PV PV insulation resistance tester has the function of measuring photovoltaic live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on

Features of UT503PV PV Insulation tester

High output voltage: DC 1000V

UTD live test: DC 1000V

Insulation resistance (PV+IR): 4000MΩ

Voltage measurement: 1000V DC & 600V AC

Auto discharge

Stepping voltage

Time measurement

Compare function (IR)

High voltage alarm

Data communication: USB cable + Bluetooth app

Lithium battery

Portable & Convenient
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 440.00

Quantity:

Add to my wishlist

More info

Specifications
Output voltage	Insulation resistance	PV insulation resistance	Accuracy
125V	<1.51MΩ	N/A	For reference only
	1.51MΩ~100.0MΩ		±(1.5%+5)
	100.1MΩ~1000MΩ		±(5%+6)
250V	<1.51MΩ	N/A	For reference only
	1.51MΩ~200.0MΩ		±(1.5%+5)
	200.1MΩ~2000MΩ		±(5%+6)
500V	<1.51MΩ	<1.51MΩ	For reference only
	1.51MΩ~1000MΩ	1.51MΩ~1000MΩ	±(1.5%+5)
	1001MΩ~4000MΩ	1001MΩ~4000MΩ	±(5%+6)
1000V	<1.51MΩ	<1.51MΩ	For reference only
	1.51MΩ~1000MΩ	1.51MΩ~1000MΩ	±(1.5%+5)
	1001MΩ~4000MΩ	1001MΩ~4000MΩ	±(5%+6)
Voltage measurement	DC Voltage	5～1000V dc	±（1%+4）
Voltage measurement	AC Voltage	5～600V ac	±（1%+4）
Short circuit current	IR measurement	<1.5mA
Short circuit current	PV IR measurement	<1.2mA
Continue measurement(IR)	√(default setting)	Compare function(IR)	√
Time measurement	√	Stepping voltage	√
Auto discharge	√	High voltage alarm	√
DUT live test	IR measurement: DO NOT test if the DUT voltage is above 25V
DUT live test	PV IR measurement: the DUT voltage should under DC 1000V
Backlight	Auto & Manual backlight; auto power off in 30s
Data storage	1000 set
Data Communication	transmission via USB cable
Data Communication	transmission via Bluetooth app
IP	IP54(with cap closed)
CAT rating	CAT II 1000V, CAT III 600V
Certificates	CE, UKCA
