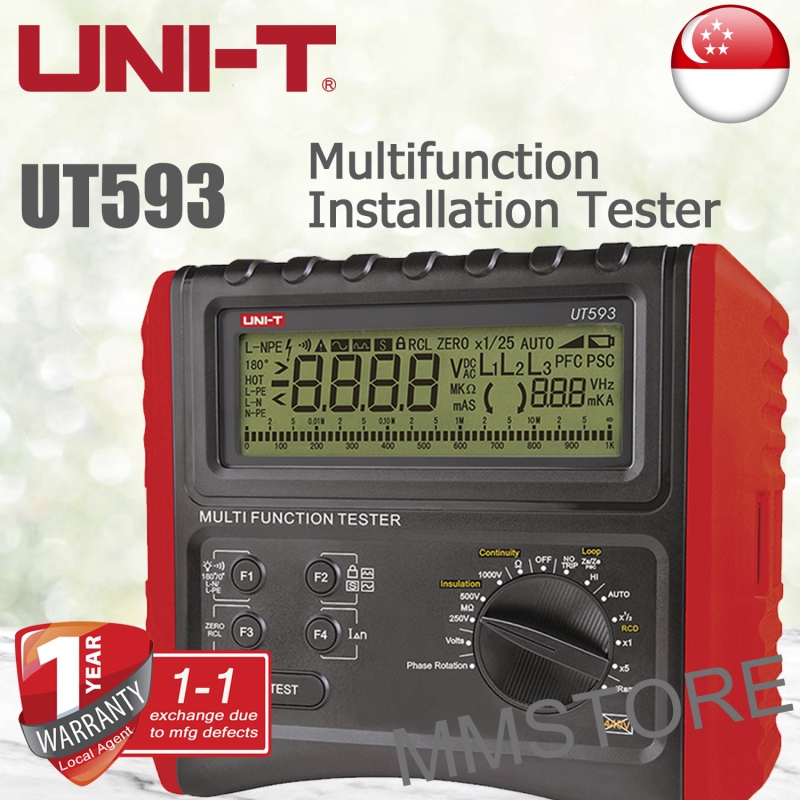

UNI-T UT593 Multi-Function Installation Tester

UT593

New

UT593 is a multifunction digital safety testing instrument, designed with combination of large-scale integrated analog & digital circuits and micro-processor chip. It mainly measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality, higher accuracy, stable performance and ease of use. The instrument is widely used to measure RCD, insulation and earth connections for various equipment, and an ideal tool for testing, inspection and maintenance badly needed for various electric devices and RCDs.

1. 9999-count LCD display with analogue bar
2. 250V~1000V DC insulation resistance test
3. 200mA earth-resistance continuity test
4. Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
5. Lock test
6. RCD trip time test and the data storage with one key
7. Full/Half wave and count downing (30s) test mode selectable
8. 0°/180° phase angle option to detect the fastest trigger time
9. Trip current test of RCD trip time X2
10. RCD trip trigger current test
11. Phase sequence and missing test
12. AC/DC voltage auto check and test
13. Connection check with status real-time display
14. White backlight; auto power off

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 59 loyalty points. Your cart will total 59 points that can be converted into a voucher of S$ 11.80.


S$ 599.00

Add to my wishlist

More info

Specifications Range Best Accuracy
Model 　 UT593
Insulation resistance (Ω) Output voltage 250V/500V/1000V ±10%
250V 0.05MΩ～250MΩ ±(5%+5)
500V 0.05MΩ～500MΩ
1000V 0.05MΩ～1000MΩ
Short-circuit current 　 <2mA
Low-resistance continuity test  Range 0.00Ω～199Ω ±(2%+5)
Test current 0.00～2Ω: >200mA √
Line impedance (Ω) Range 0.01Ω～2000Ω ±(5%+5)
Operating voltage (Frequency) 195V～440V (45Hz～65Hz) √
Test current 20A √
PFC test 0kA～26kA √
Loop impedance (Ω) Range 0.01Ω～2000Ω ±(5%+5)
Operating voltage (Frequency) 195V～253V (45Hz～65Hz) √
Test current 20A √
PFC test 0kA～26kA √
Non-trip loop impedance (Ω) Range 1.00Ω～2000Ω ±(5%+5)
Operating voltage (Frequency) 195V～253V (45Hz～65Hz) √
Test current 15mA √
PFC test 0kA～26kA √
RCD test Operating voltage (Frequency) 195V～253V (45Hz～65Hz) √
Test current 10mA/30mA/100mA/300mA/500mA ±10%
Trip time ×1/2 *I△n  Range: 0ms～2000ms ±(5%+5)
×1 *I△n  Range: 0ms～300ms
×1 *I△n  Range: 0ms～500ms (Select count down)
×5 *I△n  Range: 0ms～40ms ±(5%+5)
Phase sequence test Operating voltage (Frequency) 100V～440V  (45Hz～65Hz) √
Display Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation   √
Ramp RCD test Test current 10mA/30mA/100mA/300mA/500mA ±10%
AC voltage (V) Range 0V～440V ±(5%+2)
Frequency response 45Hz～60Hz √
Resolution 1V √
Features
Display count 　 9999
Auto power off 　 √
Low battery indication 　 √
Data storage 　 √
LCD backlight 　 √
Auto half-wave test 　 √
RCD count down test 30s √
RCD half-wave test 　 √
Phase conversion (RCD) 0° and 180° √
General Characteristics
Power 1.5V battery (5#) × 6
LCD size 125mm × 37mm
Product color Red and grey
Product net weight 1000g
Product size 210mm × 175mm × 90 mm
Standard accessories Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead
