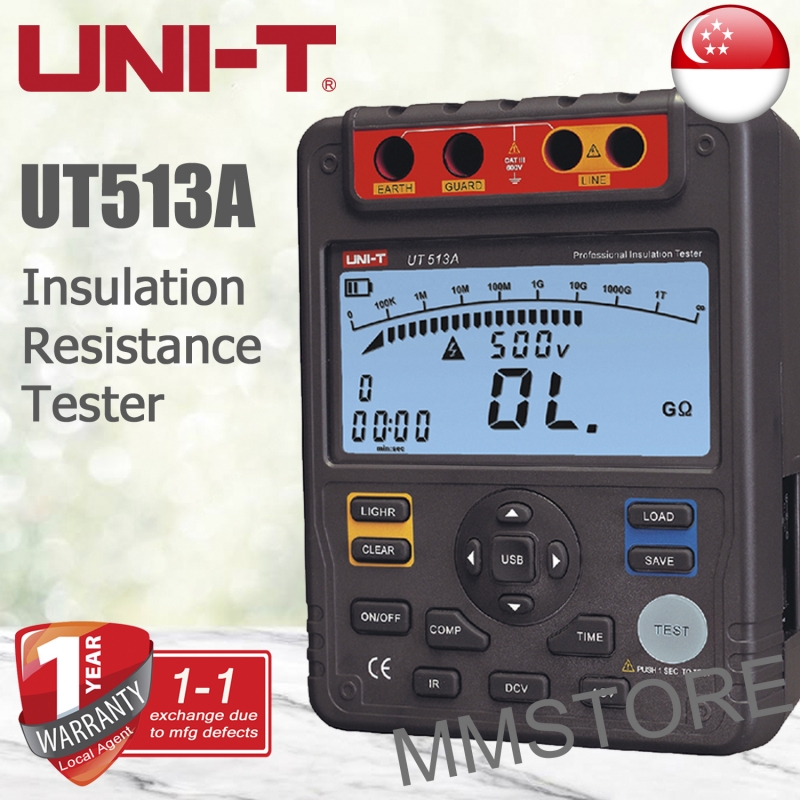

UNI-T UT513A Insulation Resistance Tester

Model UT513A

Condition New

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

1. Large 9999 display with 30-segment analog bar graph

2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Power adapter

10. Time measurement mode, auto measure within 15 minutes

11. USB interface and PC software

12. Low battery and over range indications

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

Write a review

By buying this product you can collect up to 39 loyalty points. Your cart will total 39 points that can be converted into a voucher of S$ 7.80.

Send to a friend

Send to a friend

UNI-T UT513A Insulation Resistance Tester

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Power adapter

10. Time measurement mode, auto measure within 15 minutes

11. USB interface and PC software

12. Low battery and over range indications

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 399.00

Add to my wishlist

More info

Specifications		Range	UT513A
Insulation resistance (Ω)	Test voltages	500V~5000V	0%~20%
	500V	0.5MΩ~20GΩ	±(3%+5)
	1000V	1MΩ~40GΩ	±(3%+5)
	2500V	2.5MΩ~100GΩ	±(3%+5)
	5000V	5MΩ~1000GΩ	±(3%+5)
DC voltage (V)	600V		±(2%+3)
AC voltage (V)	600V		±(2%+3)
Short-circuit current			>3mA
Features
Auto range/Auto power off			√
Test voltage secondary display			√
Low battery indication			√
Data storage			18
Comparison measurement			√
Polarization index (PI)			√
Dielectric absorption ratio (DAR)			√
USB interface			√
Analog bar graph			30
LCD backlight			√
Over-range warning			√
High voltage indication			√
Timing measurement	Around 15 minutes		√
Meets IEC 61557	61557-1:2007; 61557-2:2007
General Characterisitics
Power	1.5V battery (LR14) x 8
Display	123mm x 58mm
Product color	Red and grey
Product net weight	2kg
Product size	202mm x 155mm x 94mm
Standard accessories	2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB cable, PC software CD, power adaptor
