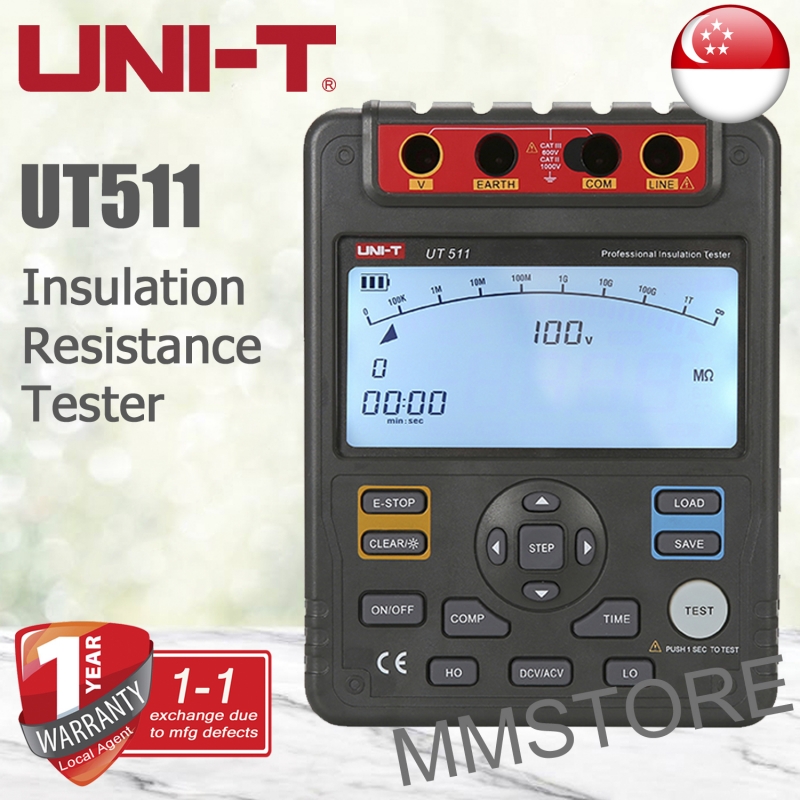

UNI-T UT511 Insulation Resistance Tester

Model UT511

Condition New

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.

1. Large 9999 display with 30-segment analog bar graph

2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Time measurement mode, auto measure within 15 minutes

10. Low battery and over range indications

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Hurry, Selling Fast!

Write a review

Send to a friend

Send to a friend

UNI-T UT511 Insulation Resistance Tester

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.

1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Time measurement mode, auto measure within 15 minutes

10. Low battery and over range indications

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

S$ 175.00

Quantity:

Add to my wishlist

More info

Specifications		Range	UT511
Insulation resistance (Ω)	Test voltages	100V~1000V	0%~10%
	100V	0.1MΩ~500MΩ	±(3%+5)
	250V	0.5MΩ~2GΩ	±(3%+5)
	500V	1MΩ~4GΩ	±(3%+5)
	1000V	2MΩ~10GΩ	±(3%+5)
DC voltage (V)	1000V		±(2%+3)
AC voltage (V)	750V		±(2%+3)
Short-circuit current			<2mA
Low resistance (Ω)	0.1Ω~999.9Ω		±(1%+3)
Features
Auto range/Auto power off			√
Low battery indication			√
Data storage			18
Comparison measurement			√
Polarization index (PI)			√
Dielectric absorption ratio (DAR)			√
Analog bar graph			30
LCD backlight			√
Over-range warning			√
High voltage indication			√
Timing measurement	Around 30 minutes		√
General Characterisitics
Power	1.5V battery (LR14) x 8
Display	123mm x 58mm
Product color	Red and grey
Product net weight	1.2kg
Product size	202mm x 155mm x 94mm
Standard accessories	2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries
