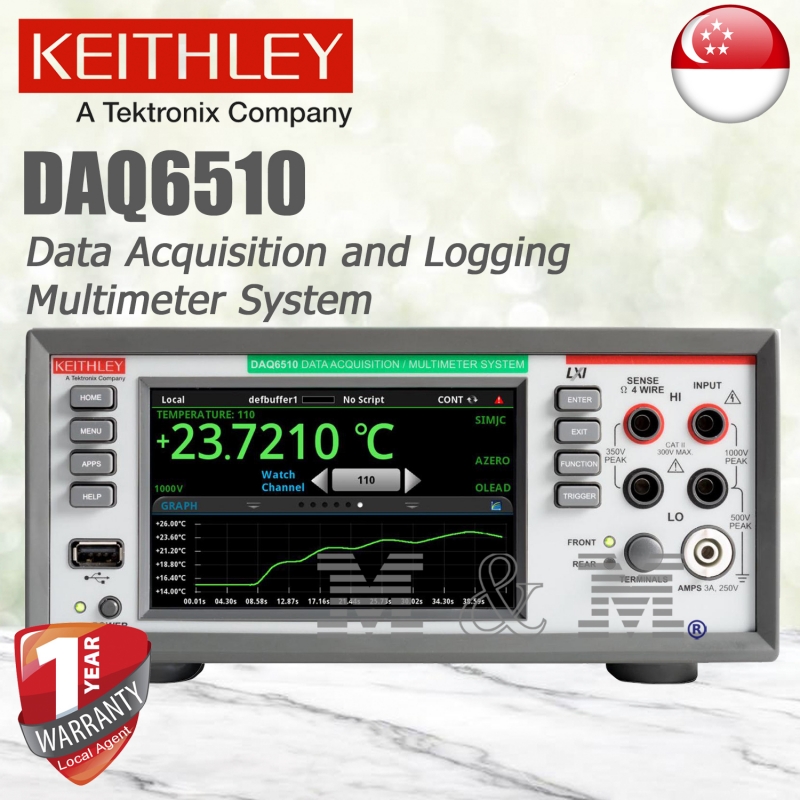

  Keithley DAQ6510 Data Acquisition and Logging, Multimeter

  The DAQ6510 is a precision data acquisition and logging system that creates a new level of simplicity compared with the often complicated configuration and control found in many standalone solutions. A large 5-inch (12.7 cm) multi-touch display will guide users through set-up, data visualization, and analysis, removing the necessity of a PC and custom software for many applications.

  Using Keithley’s newest 6½-digit multimeter technology, you will find even greater accuracy, functionality, and speed. Two-year accuracy specifications are included, so you can be assured your critical measurements remain accurate and fully traceable.

  Features

  • Large, 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display

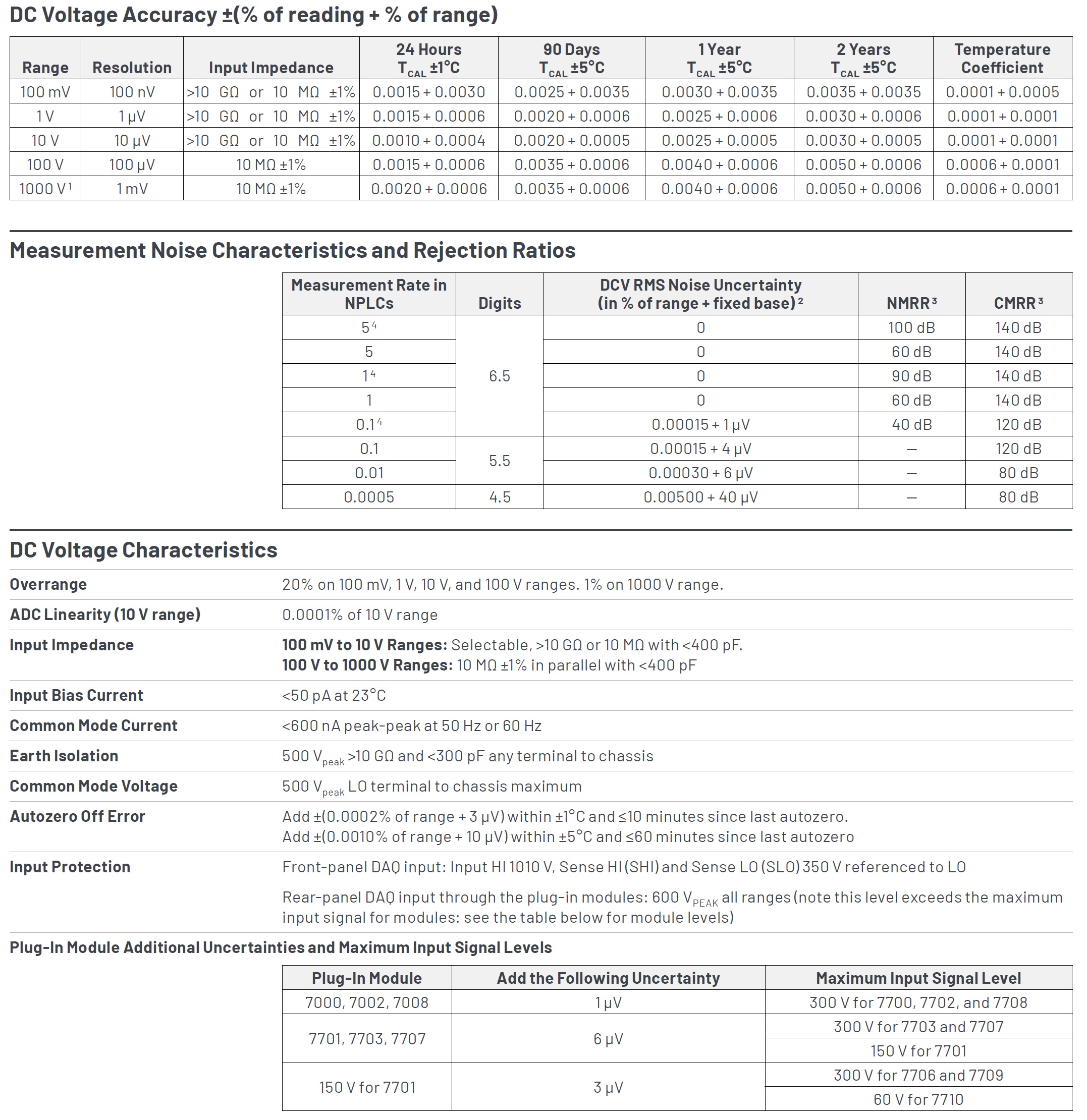

  • 2-year specified, full featured, traceable 6½-digit multimeter with 0.0025% DCV (1 V, 10 V ranges) basic accuracy
  • Standard LAN/LXI and USB-TMC communication interfaces
  • Optional interfaces include GPIB, RS-232, and TSP-Link® Technology
  • 10 different switch and control modules to connect to as many as 80 DUTs in one test set-up

  Avail subj. to prior sales, otherwise lead time 6 to 8 weeks
