● AC/DC voltage measurement
● Continuity test
UT15C
New
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.
● AC/DC voltage measurement
● Continuity test
● Single probe measurement
● Phase position indication of three-phase AC
10 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 4 loyalty points. Your cart will total 4 points that can be converted into a voucher of S$ 0.80.

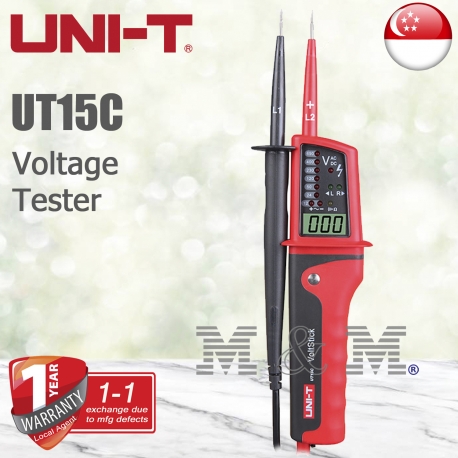

Uni-T UT15C Waterproof Type Voltage Tester
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.
● AC/DC voltage measurement
● Continuity test
● Single probe measurement
● Phase position indication of three-phase AC
Recipient :
* Required fields
or Cancel
Specifications | Range | UT15C |
LED AC/DC voltage indication (V) | 12V | 0~12V |
24V | 17V±2V | |
50V | 35V±5V | |
120V | 80V±15V | |
230V | 165V±20V | |
400V | 300V±30V | |
690V | 510V±40V | |
Phase rotation test | Operating Voltage: 0V~690V | √ |
Frequency: 50Hz~60Hz | ||
Single lead (L2) voltage detection | Operating Voltage: 0V~690V | √ |
Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0~100kΩ | √ |
Beeper and LED light Indicator | ||
Polarity detection | Positive & Negative | √ |
Features | ||
Water-proof (IP65) | √ | |
Auto range | √ | |
Work light | √ | |
Low battery indication | Short circuit two leads, LED and beeper off when the bettery is low | √ |
LCD AC/DC voltage display | 24V~690V | ±(3%+5) |
General Characteristics | ||
Power | 1.5V battery (R03) × 2 | |
Display | UT15C- 23mm × 12mm | |
Product color | Red and grey | |
Product net weight | 210g | |
Product size (W x H x D) | 275mm × 51mm × 30mm | |
Standard accessories | Batteries |
