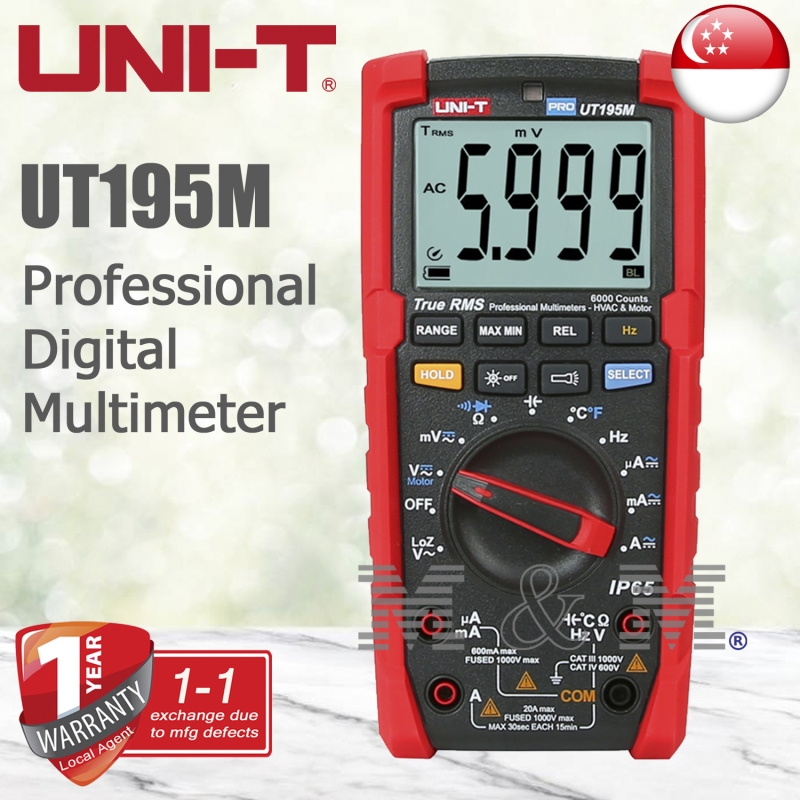

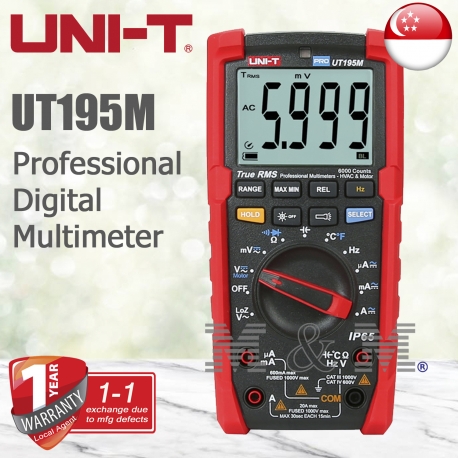

Uni-T UT195M Professional True RMS Digital Multimeter

UT195M

New

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.

Features of UT195 Series Professional Multimeters

Certificates: CE, UKCA, GS, cTUVus

● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V

● Large 6000-count LCD screen

● True RMS

● ACV 750V 5kHz bandwidth

● Flashlight

● Auto LCD backlight controlled by light sensor (can be turned off)

● LoZ voltage test, for ghost voltage measurement

● 20A current measurement (max 30 seconds)

● 31 analog bar

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

10 Items

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 points that can be converted into a voucher of S$ 3.80.


S$ 199.00

More info

Specifications Range UT195M
DC voltage (V) 1000V ±(0.5%+3)
AC+DC 750V ±(0.7%+3)
AC voltage (V) 600V
LoZ ACV 600V ±(2%+3)
DC current (A) 20A ±(0.8%+3)
AC current (A) 20A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance 60mF ±(3%+5)
Frequency 60Hz~10MHz
60Hz~40MHz ±(0.1%+4)
Duty cycle 0.1%~99.9% N/A
Temperature (°C) -40°C~1000°C ±(1.5%+4)
Temperature (°F) -40°F~1832°F ±(2%+5)
Features
Display count 6000
Display interface (LCD) Single
Measurement sampling rate times/s 3
Analog bar sampling rate times/s
Analog bar 31 sections
True RMS
AC voltage frequency response 45~1kHz
AC current frequency response 45~1kHz
3-phase motor sequence test 600V
Low pass filter 1kHz 3dB attenuation
Diode/Continuity test 3V
Peak hold 250μs
Auto/Manual range
Continuity buzzer
Low battery indication
Data hold/Auto power off
MAX/MIN
Function selection
Flashlight/Auto backlight
General Characteristics
Power 9V battery
LCD size 66mm x 51mm
Product color Red and grey
Product net weight 437g
Product size 195mm x 95 mm x 58mm
Standard accessories Test probes, battery, carrying bag, point contact temperature probe (UT195M)

Reviews

Write a review

Uni-T UT195M Professional True RMS Digital Multimeter

Uni-T UT195M Professional True RMS Digital Multimeter

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.

Features of UT195 Series Professional Multimeters

Certificates: CE, UKCA, GS, cTUVus

● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V

● Large 6000-count LCD screen

● True RMS

● ACV 750V 5kHz bandwidth

● Flashlight

● Auto LCD backlight controlled by light sensor (can be turned off)

● LoZ voltage test, for ghost voltage measurement

● 20A current measurement (max 30 seconds)

● 31 analog bar

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks
