Features of UT195 Series Professional Multimeters
UT195DS
New
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Features of UT195 Series Professional Multimeters
Certificates: CE, UKCA, GS, cTUVus
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
2 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 23 loyalty points. Your cart will total 23 points that can be converted into a voucher of S$ 4.60.

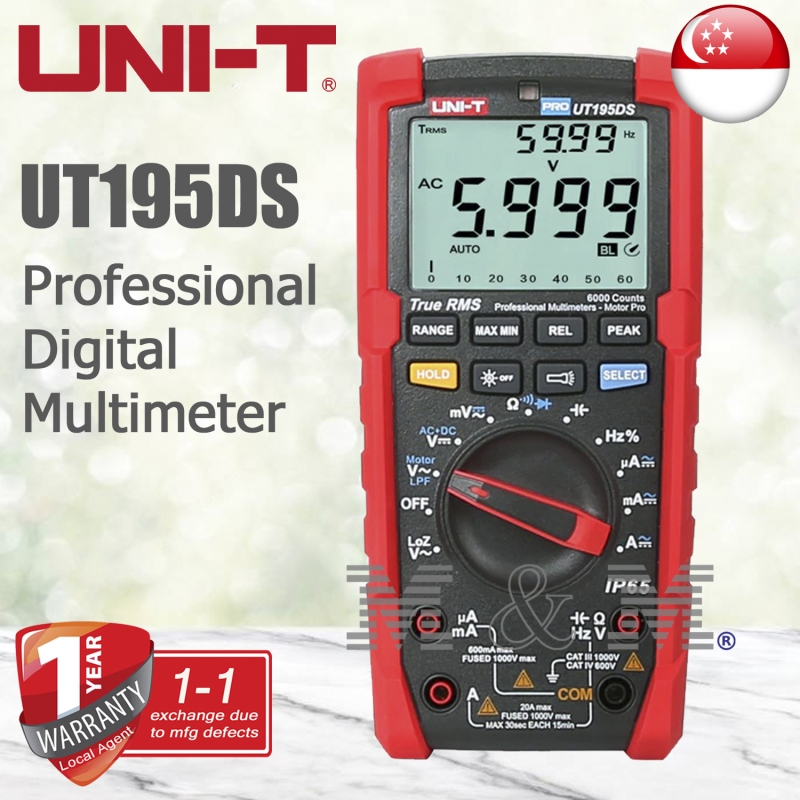

Uni-T UT195DS Professional True RMS Digital Multimeter
UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Features of UT195 Series Professional Multimeters
Certificates: CE, UKCA, GS, cTUVus
● IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
● Large 6000-count LCD screen
● True RMS
● ACV 750V 5kHz bandwidth
● Flashlight
● Auto LCD backlight controlled by light sensor (can be turned off)
● LoZ voltage test, for ghost voltage measurement
● 20A current measurement (max 30 seconds)
● 31 analog bar
Recipient :
* Required fields
or Cancel
Specifications | Range | UT195DS |
DC voltage (V) | 1000V | ±(0.5%+3) |
AC+DC | 750V | ±(0.7%+3) |
AC voltage (V) | 600V | ±(1.5%+4) |
LoZ ACV | 600V | ±(2%+3) |
DC current (A) | 20A | ±(0.8%+3) |
AC current (A) | 20A | ±(1%+3) |
Resistance (Ω) | 60MΩ | ±(0.8%+2) |
Capacitance | 60mF | ±(3%+5) |
Frequency | 60Hz~10MHz | |
60Hz~40MHz | ±(0.1%+4) | |
Duty cycle | 0.1%~99.9% | ±(2%+5) |
Temperature (°C) | -40°C~1000°C | |
Temperature (°F) | -40°F~1832°F | |
Features | ||
Display count | 6000 | |
Display interface (LCD) | Dual | |
Measurement sampling rate | times/s | 5 |
Analog bar sampling rate | times/s | 20 |
Analog bar | 31 sections | √ |
True RMS | √ | |
AC voltage frequency response | 45~5kHz | |
AC current frequency response | 45~5kHz | |
3-phase motor sequence test | 600V | √ |
Low pass filter | 1kHz 3dB attenuation | √ |
Diode/Continuity test | 3V | |
Peak hold | 250μs | √ |
Auto/Manual range | √ | |
Continuity buzzer | √ | |
Low battery indication | √ | |
Data hold/Auto power off | √ | |
MAX/MIN | √ | |
Function selection | √ | |
Flashlight/Auto backlight | √ | |
General Characteristics | ||
Power | 9V battery | |
LCD size | 66mm x 51mm | |
Product color | Red and grey | |
Product net weight | 437g | |
Product size | 195mm x 95 mm x 58mm | |
Standard accessories | Test probes, battery, carrying bag |
