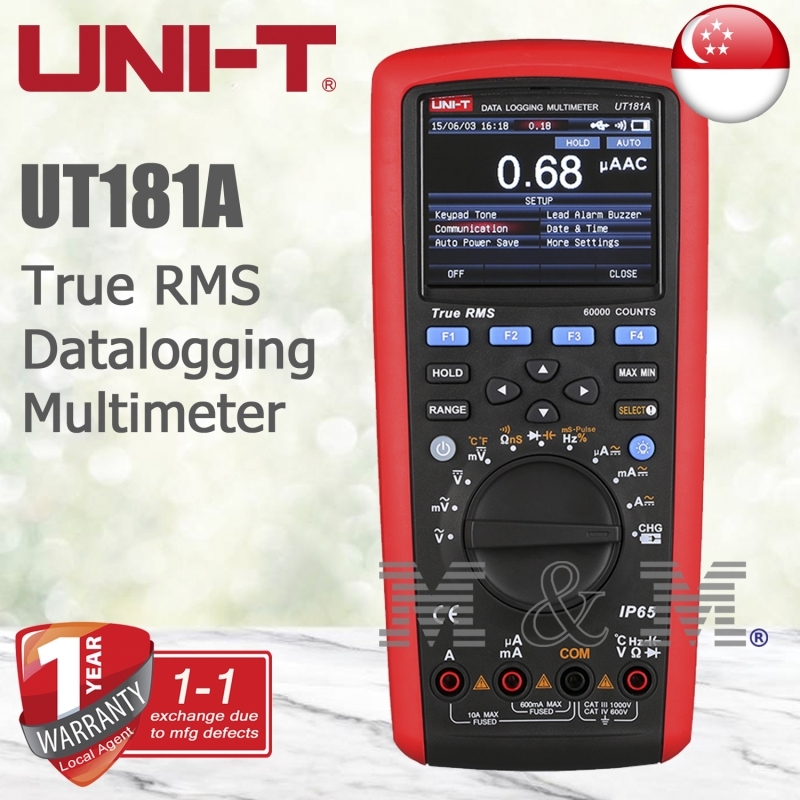

Uni-T UT181A True RMS Datalogging Multimeter

UT181A

New

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

Features of UT181A True RMS Datalogging Multimeter

Certifications: CE, UKCA, cETLus

● Trend capture

● Data logging: 20000
● Data comparison
● 3.5-inch 64k color TFT LCD
● Dual temperature measurement
● Low pass filter
● 2200mAh Li-ion battery
● Real time and date
● Peak hold
● Bluetooth/APP
● USB interface cable /PC software CD
● IP65

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 52 loyalty points. Your cart will total 52 points that can be converted into a voucher of S$ 10.40.


S$ 529.00

More info

Specifications Range UT181A
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (Ω) 60MΩ ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C)  -40°C~1000°C ±(1%+30)
Temperature (°F)  -40°F~1832°F ±(1.5%+50)
Features
Display count 60000
Auto/Manual range
Bandwidth (Hz) 100kHz
AC+DC/Continuity buzzer
Low pass filter 1kHz
dBV/dBm
Diode Around 3V
Duty cycle 10%~90%
Dual temperature measurement T1, T2, T1-T2, T2-T1
Data hold/Peak hold
Relative mode
Data logging 20000
Trend capture
MAX/MIN/AVG
Data time display/Data comparison
Backlight adjustment
Analog bar graph/USB interface
Mis-plug alarm
Battery indication/Auto power off
Rechargeable battery
Input protection
Input impedance for DCV ≥10MΩ
General Characteristics
Power Li-ion battery: 7.4V 2200mAh
Display 3.5-inch 64K color TFT LCD (320 x 240)
Product color Red and grey
Product net weight 638.6g
Product size 225mm x 103mm x 59mm
Standard accessories Battery, test leads, temperature adaptor socket,
point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
