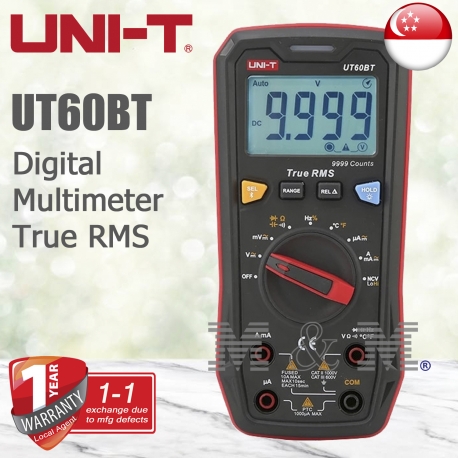

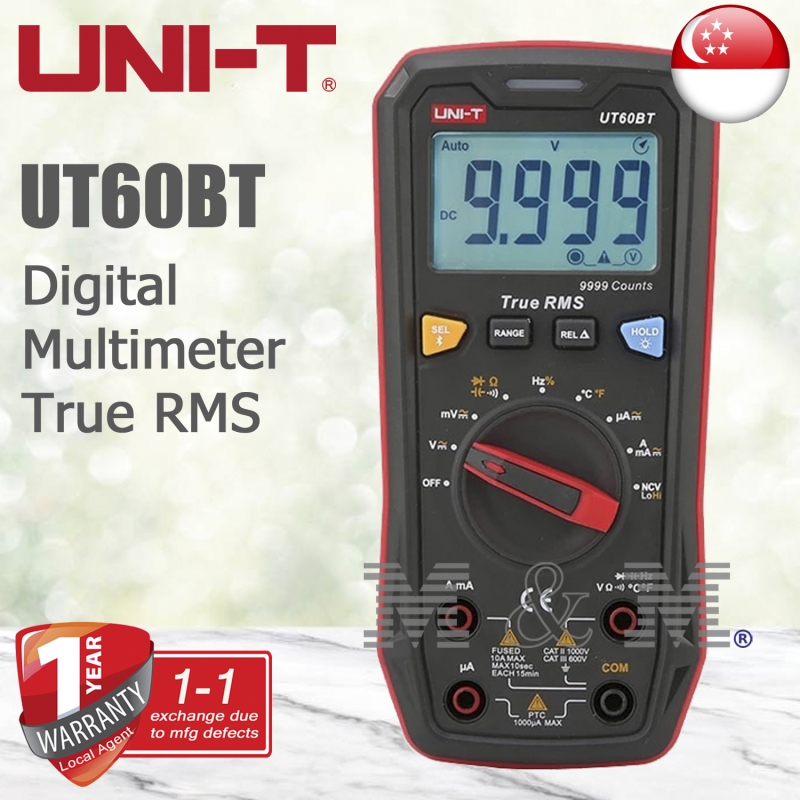

Uni-T UT60BT True RMS Digital Multimeter

UT60BT

New

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.

Features of UT60 Series Digital Multimeters

Certificates: CE, UKCA, cETLus

● 9999 counts
● True RMS
● Bluetooth
● Duty cycle
● Diode/Continuity test
● Temperature
● Non-contact voltage
● Analog bar/Data hold
● Backlight/Relative mode
● Auto/Manual range
● Low battery indication
● Three-color LED light indicator

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 4 loyalty points. Your cart will total 4 points that can be converted into a voucher of S$ 0.80.


S$ 49.00

More info

Specification Range UT60BT
DC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V
±(0.5%+3)
AC Voltage 9.999mV/99.99mV/999.9mV/
9.999V/99.99V/999.9V
±(0.8%+3)
DC Current 999.9uA/999.9mA/9.999A/10A ±(0.8%+3)
AC Current 999.9uA/999.9mA/9.999A/10A ±(1.0%+3)
Resistance 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2)
Capacitor 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.9mF ±(4.0%+5)
Frequency 99.99Hz~9.999MHz ±(0.1%+5)
Duty Cycle 0.1~99.9% ±(3%+5)
Temperatue –40℃~1000℃/–40°F~1832°F ±4℃/±5℉
Features
Bluetooth
Display Count 9999
Auto Range
REL
NCV
Diode
Continuity Test
Acousto-optic Indication (NCV/continuity/battery power)
Low Battery Indication ≤3.6V
Data Hold
Auto Power Off 15Min
Operation Temperature 0℃~40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Battery 1.5V AAA x 3
Product Color Red and Gray
Product Net Weight 290g
Product Size 169mm x 81mm x 46mm
Standard Individual Packing Gift Box, Manual, Thermocouple
