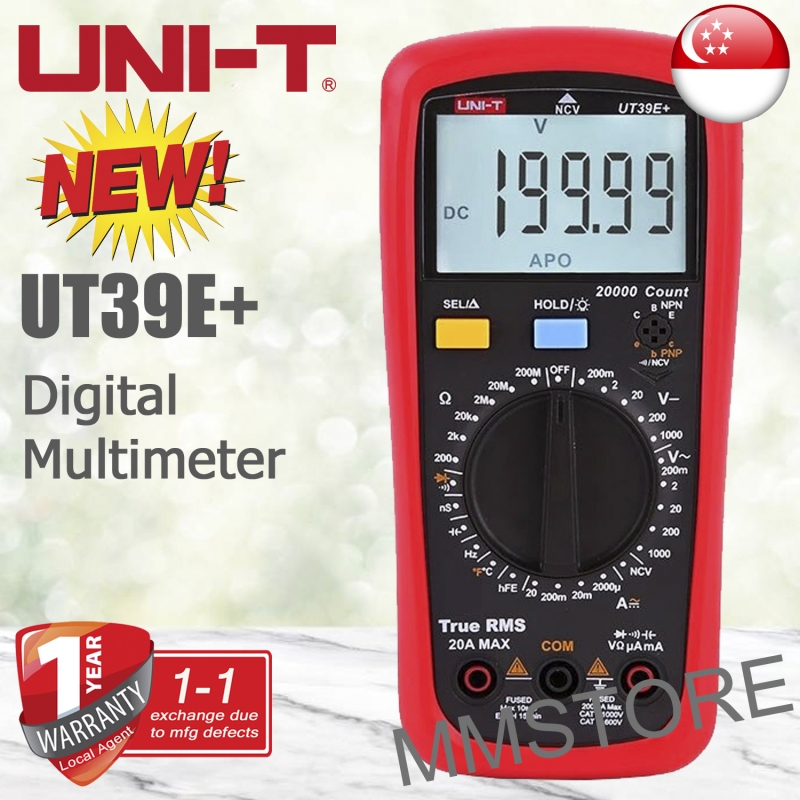

Uni-T UT39E+ Digital Multimeter

UT39E+

New

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation.

● Diode
● Continuity test
● Relative mode
● Frequency response: 40Hz~400Hz
● 2m drop test
● Data hold
● Backlight
● Auto power off
● Conductance 100nS

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

50 Items

By buying this product you can collect up to 5 loyalty points. Your cart will total 5 points that can be converted into a voucher of S$ 1.00.


S$ 50.00

More info

Specifications Range UT39E+
Category ratings CAT II 1000V, CAT III 600V
DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.05%+3)
AC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+10)
DC current (A) 2000uA/20mA/200mA/2A/20A ±(0.5%+5)
AC current (A) 2000uA/20mA/200mA/2A/20A ±(0.8%+10)
Resistance (Ω) 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ ±(0.3%+2)
Capacitance (F) 2000uF ±(4%+20)
Frequency (Hz) 10Hz~2MHz ±(0.1%+3)
Temperature  -40℃~1000℃ ±(1%+5)
 -40℉~1832℉ ±(1.5%+5)
Conductance (nS) 0.1~100nS ±(1%+3)
Display count   20000
NCV
General Characteristics
Power 1.5V battery (R03) x 2
Display 56.5mm x 36mm
Product net weight 330g
Product size 175mm x 83mm x 53mm
Standard accessories Test leads, temperature probe, English manual
