UT18D
New
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. Low battery indication and over voltage prompt
5. Flashlight
6. Test live voltage without batteries
7. Buzzer and silent modes available
8. Auto range
9. Polarity indication
2 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 6 loyalty points. Your cart will total 6 points that can be converted into a voucher of S$ 1.20.

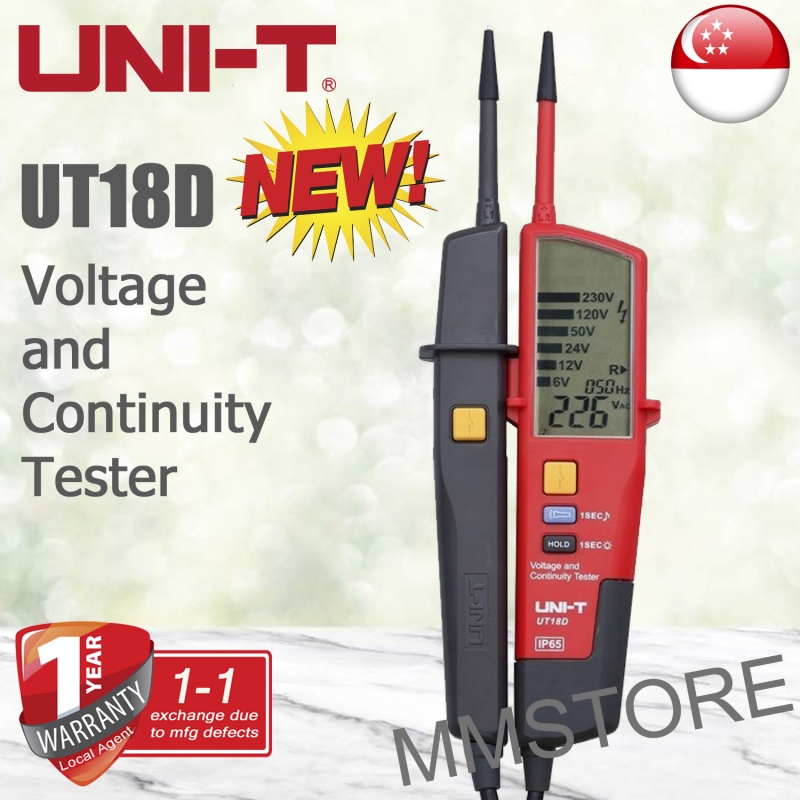

Uni-T UT18D Voltage and Continuity Tester
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. Low battery indication and over voltage prompt
5. Flashlight
6. Test live voltage without batteries
7. Buzzer and silent modes available
8. Auto range
9. Polarity indication
Recipient :
* Required fields
or Cancel
Specifications | Range | UT18D |
Voltage (V) | 6V | 5V±1V |
12V | 8V±1V | |
24V | 18V±2V | |
50V | 38V±4V | |
120V | 94V±8V | |
230V | 180V±14V | |
400V | 325V±15V | |
690V | 562V±24V | |
Phase rotation test | 57Vac~400Vac (3 phase) | √ |
Frequency: 50Hz~400Hz | ||
Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ |
Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
Beeper and LED light indication | ||
RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
Polarity detection | Positive & Negative | √ |
Self-inspection | All LED or LCD | √ |
Features | ||
Voltage indication | LCD | |
Exceed voltage | Voltage range: 713V~788V | √ |
Auto standby | Standby current<10μA | √ |
Slient mode | All range | √ |
Work light | √ | |
Low battery indication | Around 2.5V | √ |
LCD backlight | √ | |
LCD display (voltage) | 6V~690V | ±(1.5%+5) |
LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
IP65 | √ | |
General Characteristics | ||
Power | 1.5V battery (R03)×2 | |
Display | 73.5mm x 35.5mm | |
Product color | Red and grey | |
Product net weight | 280g | |
Product size (W x H x D) | 272mm x 85mm x 31mm | |
Standard accessories | Batteries |
