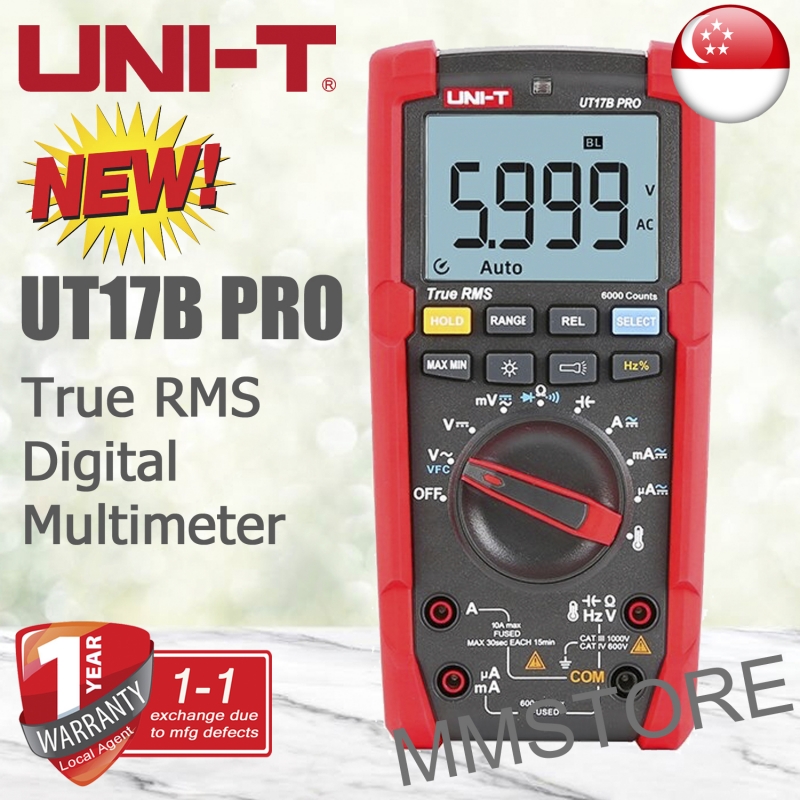

Uni-T UT17B PRO 1000V True RMS Digital Multimeter

UT17B PRO

New

UT15B PRO/UT17B PRO are highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with built-in VFC, it can filter interference, resulting in a more accurate voltage reading. These meters come with gold plated test leads for quick and accurate measurement. UT15B PRO/UT17B PRO also provide full range 1000V protection, as well as 8kV transient voltage protection, which can withstand sudden high voltage shocks.

● VFC
● Auto range
● Relative mode
● Flashlight
● True RMS
● Continuity test
● Diode test
● Max/Min
● Data hold
● Low battery indication
● Auto backlight
● Auto power off

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

10 Items

By buying this product you can collect up to 12 loyalty points. Your cart will total 12 points that can be converted into a voucher of S$ 2.40.


S$ 129.00

More info

Specifications Range UT17B PRO
Certifications CE/RoHS/cETLus
Safety ratings CAT III 1000V/CAT IV 600V
DC voltage (V) 1000V ±(0.5%+3)
AC voltage (V) 1000V ±(1%+3)
AC current (A) 10A ±(1%+3)
DC current (A) 10A ±(0.8%+3)
Resistance (Ω) 60MΩ ±(0.5%+2)
Capacitance (F) 6000μF ±(2%+5)
Frequency (Hz) 10Hz~100kHz ±(0.1%+3)
Duty cycle 1%~99% ±(1%+4)
Temperature (°C/℉)  -55℃~500℃/-67℉~932℉ ±(2%+1)
Display count   6000
AC frequency response   40~500Hz
General Characteristics
Power 1.5V battery (LR6) x 2
Product net weight 484g
Product size 195mm x 95mm x 58mm
Standard accessories English manual, test lead, temperature probe
