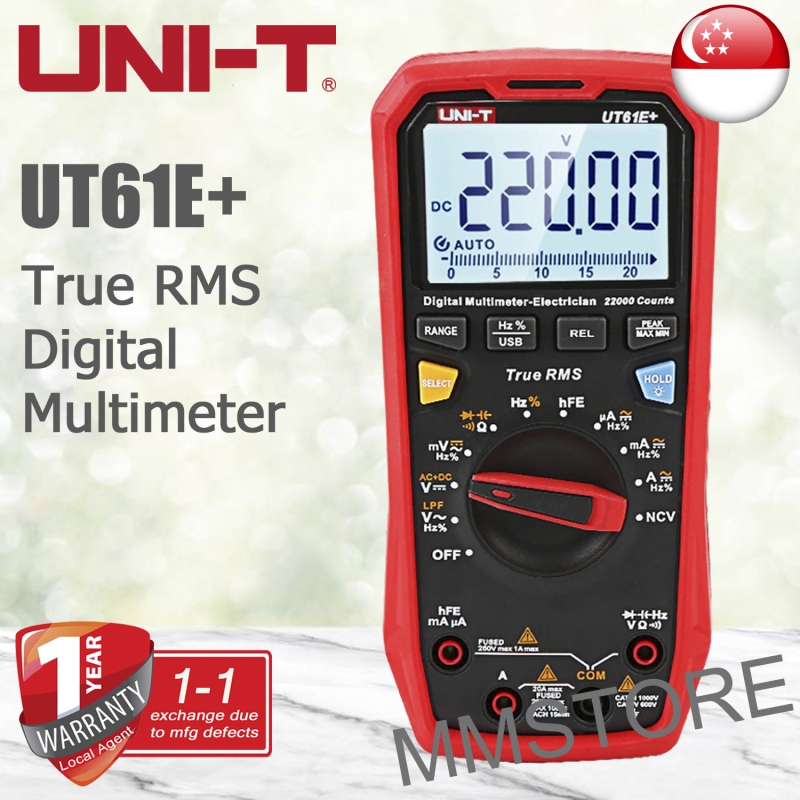

Uni-T UT61E+ 1000V True RMS Digital Multimeter

UT61E+

New

UT61+ series are reliable true RMS digital multimeters with display counts 22,000. It can measure up to 1000V AC/DC.

Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 14 loyalty points. Your cart will total 14 points that can be converted into a voucher of S$ 2.80.


S$ 148.00

More info

Specifications Range UT61E+
Safety ratings CAT III 1000V/CAT IV 600V
AC voltage (V) 1000V ±(0.8%+10)
DC voltage (V) 1000V ±(0.05%+5)
AC current (A) 20A ±(0.8%+10)
DC current (A) 20A ±(0.5%+10)
Resistance (Ω) 220MΩ ±(0.5%+10)
Capacitance (F) 220mF ±(3%+5)
Frequency (Hz) 220MHz ±(0.01%+5)
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Display count   22000
Bandwidth (Hz)   40~10kHz
LPF ACV
ACV+DCV
Transistor hFE
Peak Hold
Analog bar   46
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, temperature multi-purpose socket, English manual
