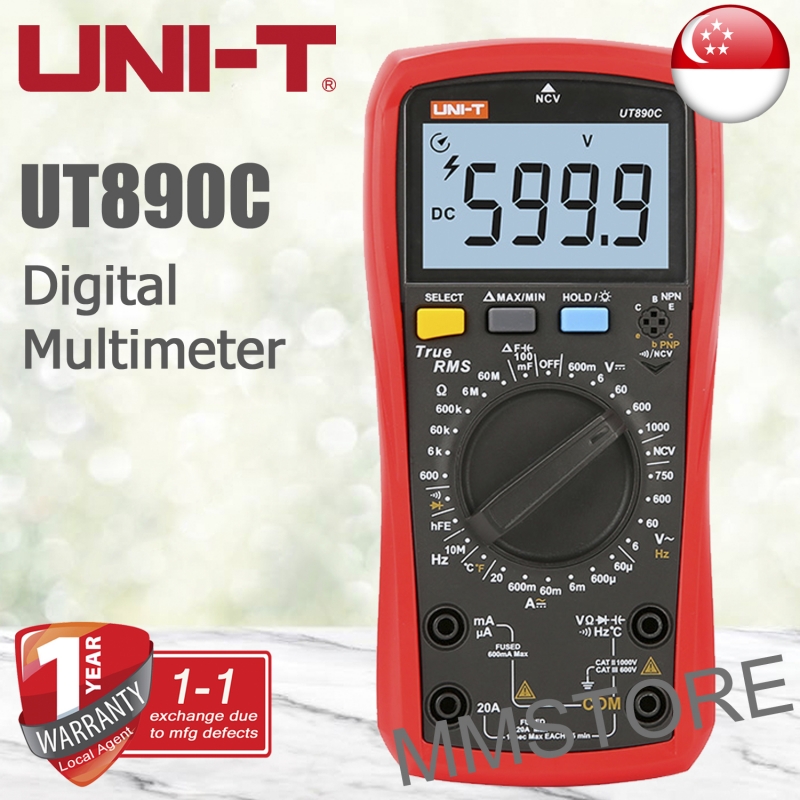

Uni-T UT890C Digital Multimeter

UT890C

New

The UT890C 6000-count true RMS digital multimeters are designed with large LCD display.

Applications:

1. Electrical switchboards
2. HVAC systems
3. Electrical circuit faults detection
4. Installation or maintenance of electronics/factory equipment
5. Electronics component development, circuit board design
6. Users who need to distinguish between neutral/live wire frequently

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

3 Items

Hurry, Selling Fast!

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points that can be converted into a voucher of S$ 0.60.


S$ 31.00

More info

Specification Range UT890C
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3)
ACV Frequency 10Hz~10kHz ±(0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF
/600.0μF/6.000mF/60.00mF/100.0mF
±(3%+10)
Frequency 9.999Hz~9.999MHz ±(1.0%+5)
Temperatue –40℃~1000℃/–40°F~1832°F
±(1.5%+5)
Fetures
Display Count   6000
Manual Range
NCV
hFE
Diode Test
Continuity Test
True RMS
Fuse blowing alarm
Acousto-optic indication(NCV/continuity)
High voltage false detection 1000Vrms
Current (AC/DC) mode memory
Over-current alarm ≥20A
Low Battery Indication ≤2.5V
Data Hold
REL
Max/Min V 、A
Auto  Power Off 15Min
Back light 30s
Operation Temperature 0℃~40℃
Safety CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2
Product color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
