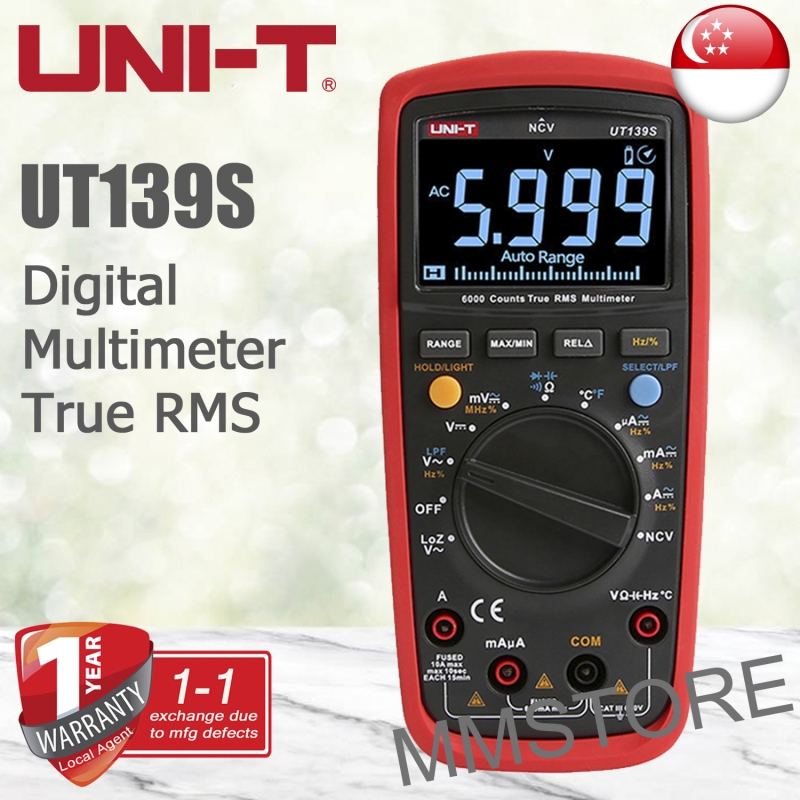

Uni-T UT139S True RMS Digital Multimeter

UT139S

New

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

1. True RMS
2. NCV
3. Auto/manual ranges selectable
4. 31-segment analog bar graph
5. Diode, duty ratio and continuity buzzer
6. Black EBTN screen

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

30 Items

By buying this product you can collect up to 8 loyalty points. Your cart will total 8 points that can be converted into a voucher of S$ 1.60.


S$ 89.00

More info

Specifications Range UT139S
DC voltage (V) 600V ±(0.5%+2)
AC voltage (V) 600V ±(0.8%+3)
DC current (A) 10A ±(0.7%+2)
AC current (A) 10A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature (°C) -40°C~1000°C ±(1%+4)
Temperature (°F) -40°F~1832°F ±(1.5%+5)
Features
Display count   6000
Auto range/Manual range/True RMS
Bandwidth (Hz)   45Hz~400Hz
NCV/Continuity buzzer
Duty cycle 0.1%~99.9%
Diode   Around 3V
LPF/LoZ (ACV)
Analog bar
General Characteristics
Power 1.5V battery (R6) x 2
Display 58mm x 36mm
Product color Red and grey
Product net weight 345g
Product size 170mm x 80mm x 48mm
Standard accessories Batteries, test leads, temperature probe

Reviews

Write a review

Uni-T UT139S True RMS Digital Multimeter

Uni-T UT139S True RMS Digital Multimeter

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

1. True RMS
2. NCV
3. Auto/manual ranges selectable
4. 31-segment analog bar graph
5. Diode, duty ratio and continuity buzzer
6. Black EBTN screen

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks
