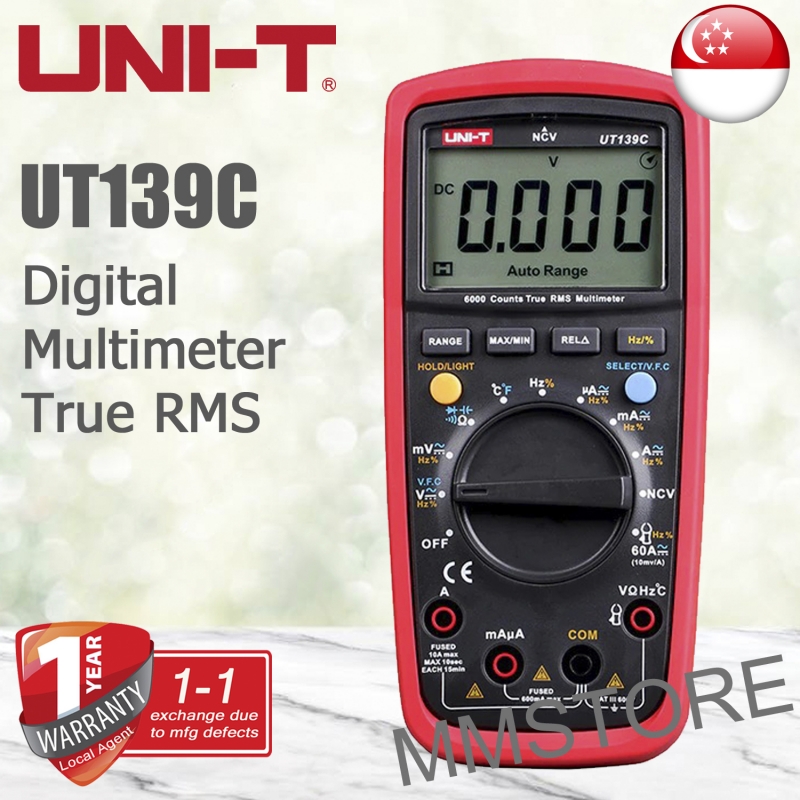

Uni-T UT139C True RMS Digital Multimeter

UT139C

New

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity.

1. MAX/MIN/REL modes
2. Data hold, LED backlight, auto power off
3. Full range protection (600V)
4. True RMS
5. NCV
6. Auto/manual ranges selectable

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

50 Items

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of S$ 1.40.


S$ 75.00

Add to my wishlist

More info

Specifications Range UT139C
DC voltage (V) 600V ±(0.5%+2)
AC voltage (V) 600V ±(0.8%+3)
DC current (A) 10A ±(0.7%+2)
AC current (A) 10A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature (°C) -40°C~1000°C ±(1%+3)
Temperature (°F) -40°F~1832°F ±(1.5%+5)
Features
Display count 　 6000
Auto range/Manual range
/True RMS		 　 √
Bandwidth (Hz) 　 45Hz~1kHz
NCV/Continuity buzzer 　 √
Duty cycle 0.1%~99.9% √
Diode 　 Around 3V
General Characteristics
Power 1.5V battery (R6) x 2
Display 58mm x 36mm
Product color Red and grey
Product net weight 354g
Product size 170mm x 80mm x 48mm
Standard accessories Batteries, test leads, temperature probe
