UT118B
New
UT118 series pen type multimeters are light and durable. This meter has a fast sampling rate of 4 times/s, which can quickly capture measurement readings. It is a cost-effective product customized for home appliance repair and DIYers.
1. Display count: 3000
2. Auto SCAN and range identify mode
3. Data hold, auto power off, low battery indication
4. MAX/MIN modes
5. LCD backlight and flashlight
6. Non-contact voltage detection
5 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 4 loyalty points. Your cart will total 4 points that can be converted into a voucher of S$ 0.80.

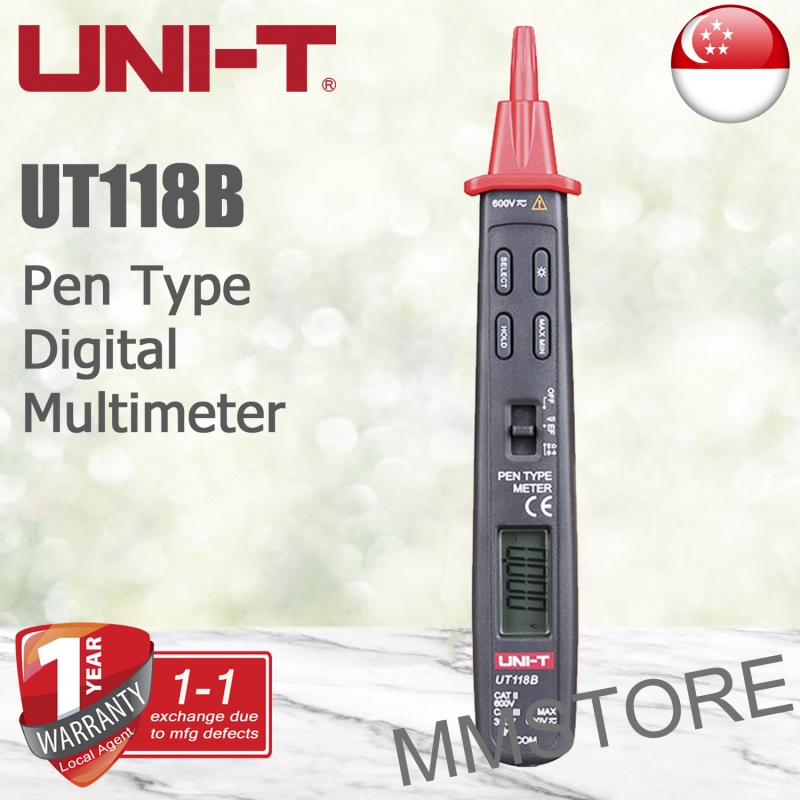

Uni-T UT118B Pen Type Digital Multimeter
UT118 series pen type multimeters are light and durable. This meter has a fast sampling rate of 4 times/s, which can quickly capture measurement readings. It is a cost-effective product customized for home appliance repair and DIYers.
1. Display count: 3000
2. Auto SCAN and range identify mode
3. Data hold, auto power off, low battery indication
4. MAX/MIN modes
5. LCD backlight and flashlight
6. Non-contact voltage detection
Recipient :
* Required fields
or Cancel
Specifications | Range (SCAN Mode) |
Range (AUTO Mode) |
UT118B |
DC voltage (V) | 300V | 300V | ±(1%+3) |
AC Voltage (V) | 300V | 300V | ±(1%+4) |
Resistance (Ω) | 3MΩ | 30MΩ | ±(1%+3) |
Capacitance (F) | 300μF | 3mF | ±(3%+5) |
Features | |||
Display count | 3000 | ||
Auto range | √ | ||
EF function | √ | ||
Diode | √ | ||
Auto power off | Around 10 minutes | √ | |
Continuity buzzer | √ | ||
Low battery indication | √ | ||
Data hold | √ | ||
MAX/MIN | √ | ||
LCD backlight | √ | ||
Penlight | √ | ||
Input impedance for DCV | ≥10MΩ | √ | |
General Characteristics | |||
Power | 3V battery (CR2032) | ||
Display | 28mm x 14mm | ||
Product color | Red and grey | ||
Product net weight | 90g | ||
Product size | 20mm x 27mm x 182mm | ||
Standard accessories | Battery, test lead |
