UT105
New
UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on fuse, switch, solenoid, relay, charging system, fuel system, engine sensing etc.
1. Diode/Data hold
2. Continuity buzzer
3. Low battery indication
4. Input protection
2 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 3 loyalty points. Your cart will total 3 points that can be converted into a voucher of S$ 0.60.

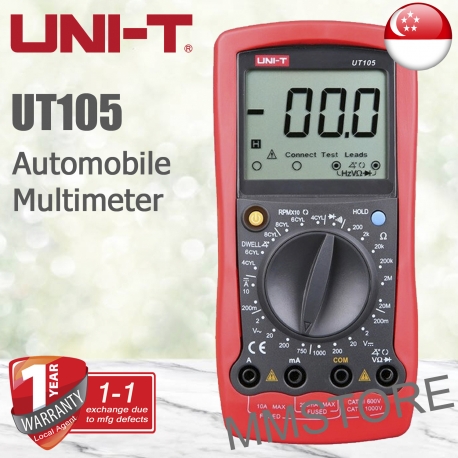

Uni-T UT105 Digital Multimeter (Automobile Diagnostic Multimeter)
UT100 series is specially designed for automobiles diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on fuse, switch, solenoid, relay, charging system, fuel system, engine sensing etc.
1. Diode/Data hold
2. Continuity buzzer
3. Low battery indication
4. Input protection
Recipient :
* Required fields
or Cancel
Specifications | Range | UT105 |
DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) |
AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+5) |
DC current (A) | 200mA/10A | ±(0.8%+5) |
Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+5) |
Features | ||
Display count | 2000 | |
Manual range | √ | |
Input impedance for DCV | Around 10MΩ | √ |
Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
General Characteristics | ||
Power | 9V battery (6F22) | |
Display | 60mm x 54mm | |
Product color | Red and grey | |
Product net weight | 351g (including holster) | |
Product size | 179mm x 88mm x 39mm | |
Standard accessories | Battery, test leads, holster |
