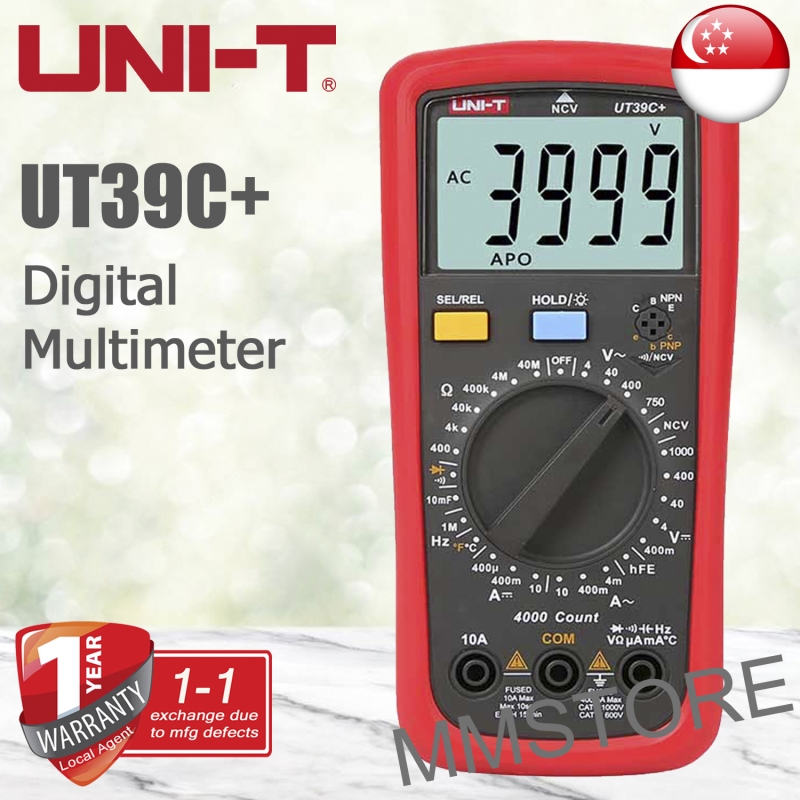

Uni-T UT39C+ Digital Multimeter

UT39C+

New

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation.

1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

Currently out of stock, stocks to be replenished 2~4 weeks OR contact us for more details

S$ 30.00

More info

Specifications Range UT39C+
DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+5)
AC voltage (V) 4V/40V/400V/750V ±(0.8%+3)
DC current (A) 400uA/400mA/10A ±(0.8%+3)
AC current (A) 4mA/400mA/10A ±(1%+2)
Resistance (Ω) 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)
Capacitance (F) 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF ±(4%+5)
Frequency (Hz) 10Hz~1MHz ±(1%+4)
Temperature -40℃~1000℃ ±(1%+4)
-40℉~1832℉ ±(1.5%+5)
Features
Display count   4000
Transistor hFE   √
NCV   √
Diode   √
Frequency response 40Hz~400Hz √
Range selection   Manual
Continuity test   √
Data hold   √
Backlight   √
Low battery indication   √
Auto power off   √
General Characteristics
Power 1.5V battery (R03)×2
Display 56.5mm x 36mm
Product color Red and grey
Product net weight 330g
Product size 175mm x 83mm x 53mm
Standard accessories Test leads, temperature probe
