UT39A+
New
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation.
1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test
20 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of S$ 0.40.

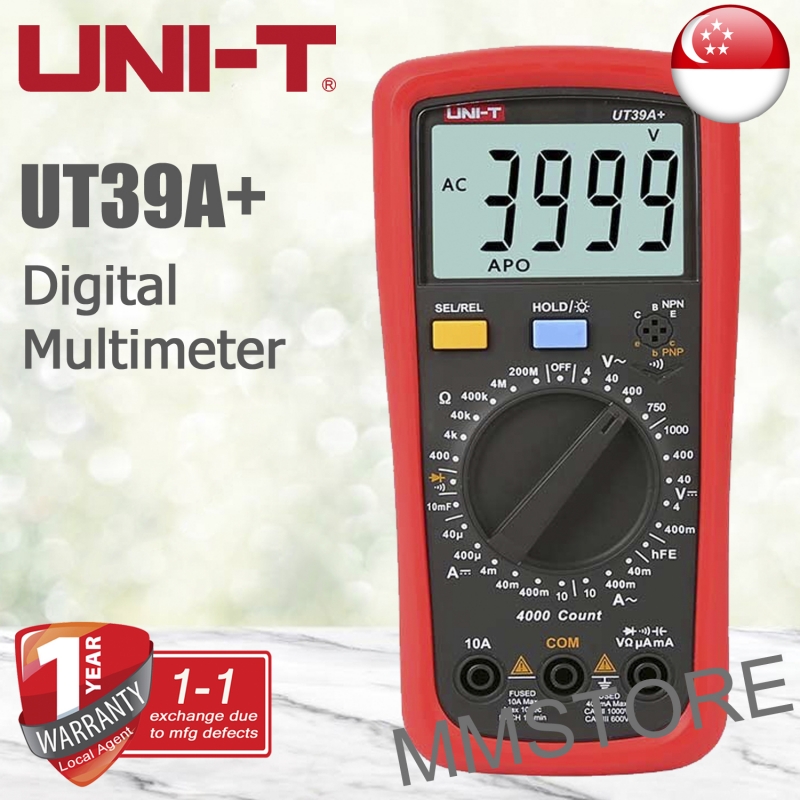

Uni-T UT39A+ Digital Multimeter
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation.
1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test
Recipient :
* Required fields
or Cancel
Specifications | Range | UT39A+ |
DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) |
DC current (A) | 40uA/400uA/4mA/40mA/400mA/10A | ±(0.8%+3) |
AC current (A) | 40mA/400mA/10A | ±(1%+2) |
Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | ±(0.8%+2) |
Capacitance (F) | 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF | ±(4%+5) |
Features | ||
Display count | 4000 | |
Transistor hFE | √ | |
Diode | √ | |
Frequency response | 40Hz~400Hz | √ |
Range selection | Manual | |
Continuity test | √ | |
Data hold | √ | |
Backlight | √ | |
Low battery indication | √ | |
Auto power off | √ | |
General Characteristics | ||
Power | 1.5V battery (R03)×2 | |
Display | 56.5mm x 36mm | |
Product color | Red and grey | |
Product net weight | 330g | |
Product size | 175mm x 83mm x 53mm | |
Standard accessories | Test leads |
