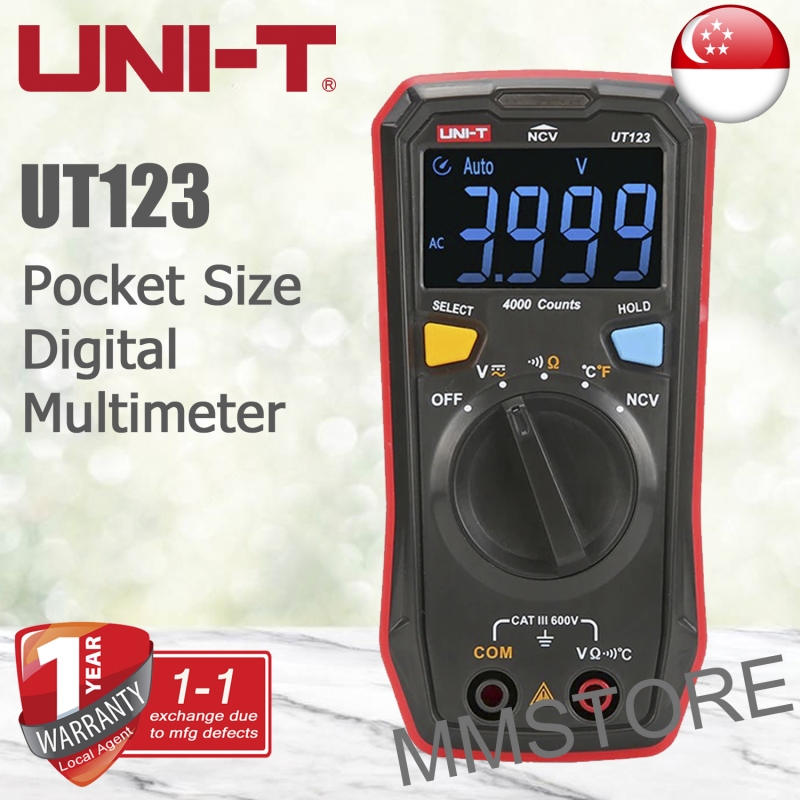

Uni-T UT123 Pocket Size Digital Multimeter

UT123

New

The UT123 is a pocket-sized residential multimeter designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments.
*NCV voltage values above are tested at contact distance (0cm) from the test object, it is used for reference only. When meter is at some distance away from test object, NCV indication light may change to the weaker voltage color

Ex-stock subject to prior sales, otherwise lead time 6 to 8 weeks

More details

20 Items

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 point that can be converted into a voucher of S$ 0.20.


S$ 19.00

More info

Specifications Range UT123
DC Voltage 4V/40V/400V/600V ±(0.5%+2)
AC Voltage 4V/40V/400V/600V ±(1.0%+3)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ ±(0.8%+2)
Temperatue –40℃~ 300℃/–40℉~ 572℉ ±4℃
Features
Display Count   4000
Autol Range
NCV
Continuity Test
Acousto-optic indication(NCV/continuity/battery power)
Low Battery Indication ≤2.7V
Data Hold
Auto  Power Off 15Min
Operation Temperature   0℃~40℃
Safety   CAT III 600V
General Characteristics
Power 1.5V battery (R03) x 2
Display 44mm × 26mm
Product color Red and grey
Product net weight 130g
Product size 130mm x 65m x 28mm
Standard accessories Batteries,  Thermocouple
