UT256B
New
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the 'fork' to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
5 Item Items
Hurry, Selling Fast!
Availability date:
By buying this product you can collect up to 10 loyalty points. Your cart will total 10 points that can be converted into a voucher of S$ 2.00.

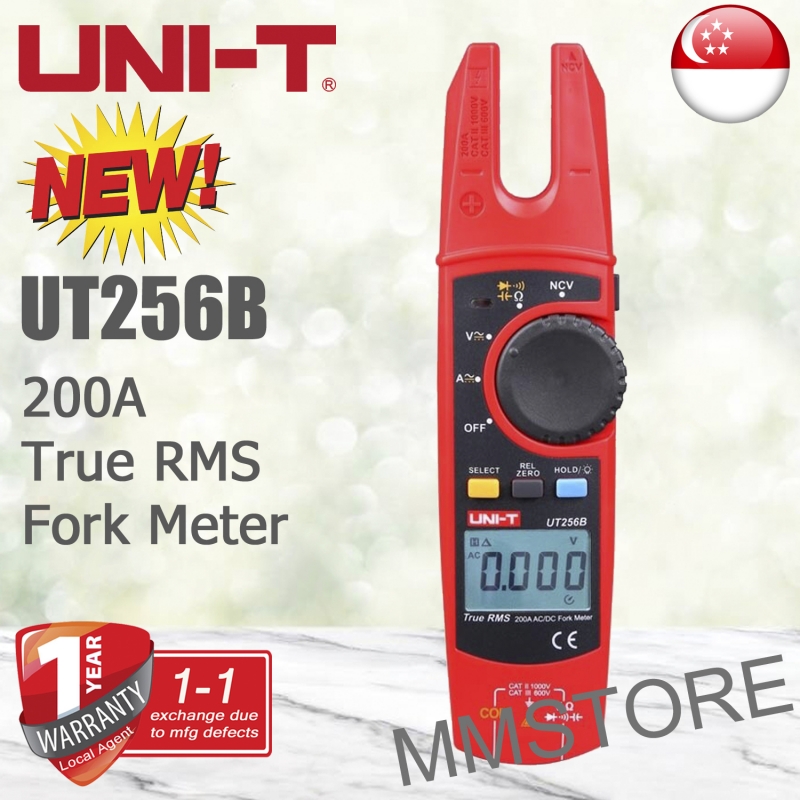

UNI-T UT256B 200A True RMS Fork Meter
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the 'fork' to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
Recipient :
* Required fields
or Cancel
Specifications | Range | UT256B |
Certifications | CE/RoHS/cETLus | |
Safety ratings | CAT II 1000V, CAT III 600V | |
AC current (A) | 200A | ±(2.5%+5) |
DC current (A) | 200A | ±(2.5%+5) |
AC voltage (V) | 750V | ±(1.2%+3) |
DC voltage (V) | 1000V | ±(0.8%+3) |
Resistance (Ω) | 60MΩ | ±(1%+2) |
Capacitance (F) | 60mF | ±(4%+20) |
Display count | 6000 | |
Diode test | About 3V | √ |
NCV | √ | |
Zero mode | √ | |
Relative mode | √ | |
General Characterisitics | ||
Power | 1.5V battery (LR6) x 2 | |
Display | 36.5mm x 24mm | |
Product net weight | 248g | |
Product size | 210mm x 53mm x 35mm | |
Standard accessories | Batteries, test leads, English manual |
