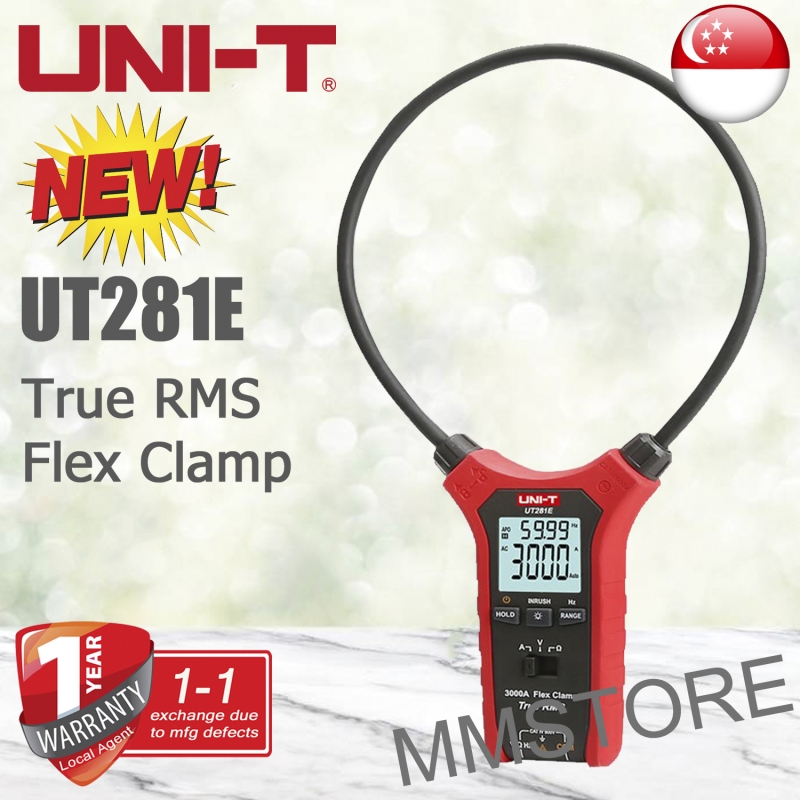

UNI-T UT281E True RMS Flex Clamp

UT281E

New

UT281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians.

1. 2m drop proof, ETL/Intertek certified 3rd edition CE
2. Coil diameter: 0.75cm, bending length: 47.5cm
3. Large LCD display for clear reading
4. True RMS
5. Long press INRUSH key for 2s to measure inrush current
6. 0~6MΩ resistance and 20~40kHz frequency measurements
7. Data hold, backlight, auto power off

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 16 loyalty points. Your cart will total 16 points that can be converted into a voucher of S$ 3.20.


S$ 169.00

More info

Specifications Range UT281E
AC current (A) 30A/300A/3000A ±(3%+5)
Frequency response 45Hz~500Hz (sine wave)
Inrush current 0.5A~3000A (for reference)
AC voltage (V) 600V ±(1.2%+3)
Resistance (Ω) 60MΩ ±(1.2%+3)
Frequency (Hz) 20Hz~30kHz ±(1%+2)
Features
Range selection   Auto (manual range available in current measurement)
Flex coil size   18'' (45.7cm) radius: 3.1'' (8cm)
Display count   6000 (3000 in current
measurement)
Refresh rate   3 times/s
True RMS
Display interface (LCD)   Dual
Data hold/Buzzer
Auto power off
Low battery indication
Backlight/Function selection
2m drop test
General Characterisitics
Power 1.5V battery (R03) x 3
Display 32 x 34mm (1.8 inches)
Product color Red and grey
Product net weight 250g
Product size 325mm x 180mm x 30mm
Standard accessories Batteries, test leads
