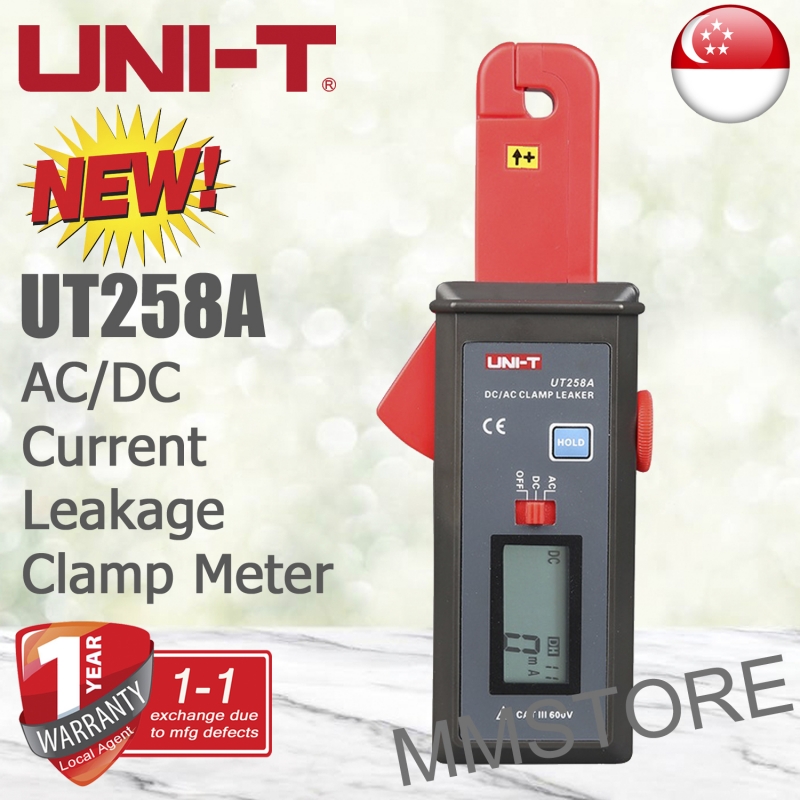

UNI-T UT258A AC/DC Leakage Clamp Meter

UT258A

New

UT258A is a 10000-count auto range clamp meter. It measures 0mA~60A AC/DC leakage current with zero mode, φ7mm jaw and RS-232 interface.

Applications:
It could be widely applied in electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.

More details

2 Items

Hurry, Selling Fast!

By buying this product you can collect up to 18 loyalty points. Your cart will total 18 points that can be converted into a voucher of S$ 3.60.


S$ 180.00

More info

General Functions Range Accuracy
Type   UT258A
Current (A) 0mA~60.0A AC/DC ±(2%+5)
Resolution 1mA AC/DC
Frequency Response AC: 45HZ~200HZ
Special Functions
Display Mode 4-bit LCD display
Jaw Size φ7mm (max wires O.D.)
Auto Range
RS-232 Data Transmission
Data Storage   99 groups
Zero Adjustment Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested.
Data Hold
Line Voltage not beyond 600V
Auto Power Off 5 min
Low Battery Indication Indicates low battery when the voltage is 7.2
Sampling Rate About 2 sec per time
Working Current 10mA
General Characteristics
Power Supply Zinc-manganese battery 6F22 9V
Product Color Red and grey
Product Weight 180g (with batteries)
Product Size 168mm×65mm×34mm
Standard Accessories Batteries, monitoring software, RS232 cable
