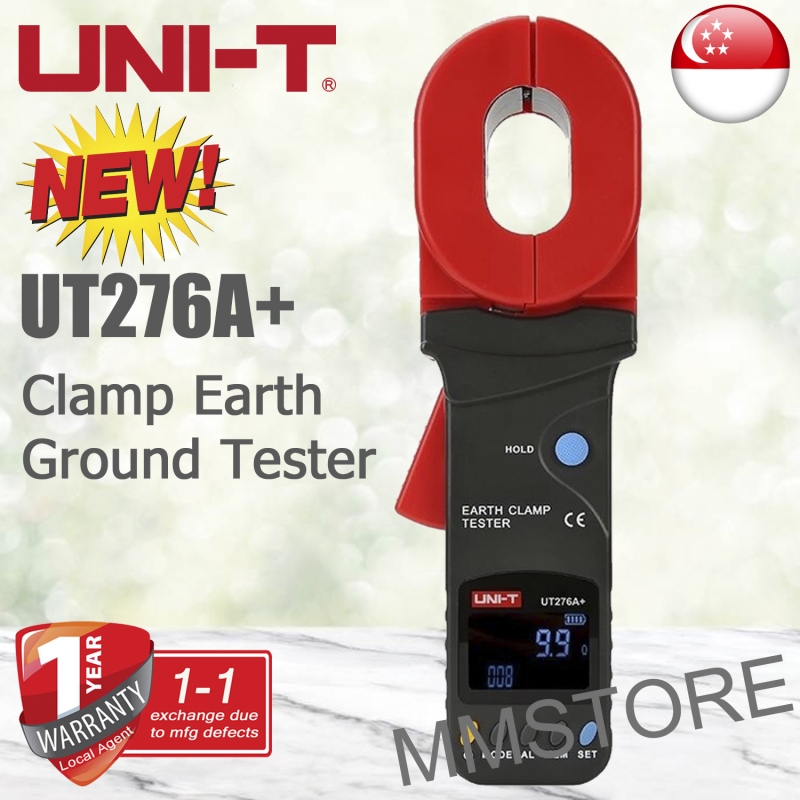

UNI-T UT276A+ Clamp Earth Ground Tester

UT276A+

New

UT270 series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. These clamps’double insulation design makes them durable tools for outdoor work and effective in blocking interference from the environment.

● Auto range
● Data hold
● Data recall
● LCD backlight
● Resistance limit alarm
● Low battery indication
● Auto calibration

More details

1 Item

Hurry, Selling Fast!

By buying this product you can collect up to 48 loyalty points. Your cart will total 48 points that can be converted into a voucher of S$ 9.60.


S$ 480.00

More info

Specifications Range UT276A+
Certifications CE, RoHS (UT276A+/278A+ only)
Category ratings CAT III 300V
Earth Ground Resistance (Ω) 0.01~0.099Ω ±(1%+0.01)
0.1~0.99Ω ±(1%+0.01)
1~49.9Ω ±(1%+0.1)
50~99.5Ω ±(1.5%+0.5)
100~199Ω ±(2%+1)
200~395Ω ±(5%+5)
400~590Ω ±(10%+10)
Display count   4 digits LCD display
Jaw opening   32mm
Visual and audible alarm
Auto power off
Jamming signal recognition
Over-range display
Data storage   300
Display type   EBTN
General Characterisitics
Power 1.5V battery (LR6) x 4
Display 47mm x 28.5mm
Product net weight 1.18kg
Product size 285mm x 85mm x 56mm
Standard accessories Batteries, test ring, English manual
